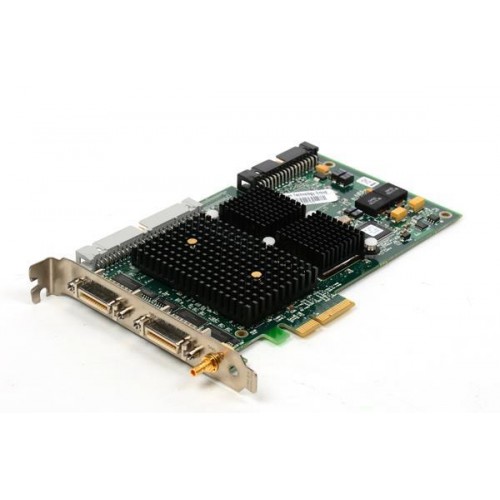

The National Instruments PCIe-1429 is a PCI Express image acquisition board for Base-, Medium- and Full-configuration Camera Link cameras.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCIe-1429 connects Camera Link cameras to a PCI Express computer for image acquisition. NI documents its acquisition functions, signal connections and programming options in the dedicated user manual.
System integration requires checking both the camera timing and the host slot. NI specifies a native x4 link with x8 and x16 up-plugging, while noting that some computers restrict transfer rates in larger slots.
Verified product specifications.
| Camera interface standard | Camera Link 1.1 |
|---|---|
| Supported camera configurations | Base, Medium, Full |
| PCI Express compliance | 1.0a |
| Native PCI Express link width | x4 |
| Supported up-plugging link widths | x8, x16 |
| Pixel clock frequency range | 20–85 MHz |
| External trigger I/O lines | 1 line |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host expansion interface
Camera Link image acquisition board
NI explicitly lists PCIe-1429 support in NI-IMAQ 19.0, included with Vision Acquisition Software 19.0.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI documents support for Base, Medium and Full configurations.
The optional NI Camera Link I/O Extension Board exposes external I/O lines 1–8 and isolated I/O. External line 0 is the frame grabber's front-panel SMB connection.
