National Instruments · PCI

PCI-MXI-2

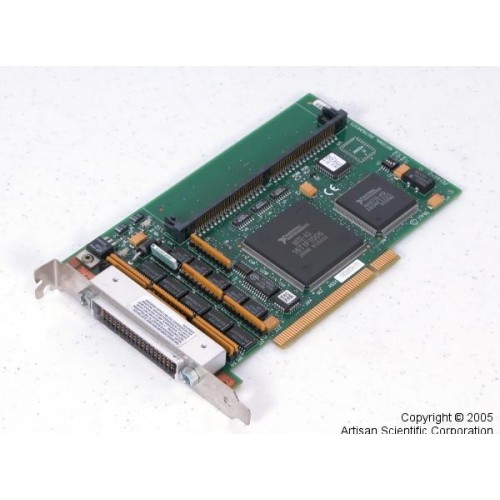

The National Instruments PCI-MXI-2 is a PCI host interface used in MXI-2 systems for external control of VXI or VME mainframes. NI documents configurations pairing the card with a VXI-MXI-2 or VME-MXI-2 mainframe extender and NI-VXI software.

ManufacturerNational Instruments

ModelPCI-MXI-2

Product TypePCI-to-MXIbus interface card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-MXI-2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host platformPCI-based computer

Interface familyMXI-2

Mainframe interfacesVXI-MXI-2 or VME-MXI-2

SoftwareNI-VXI; release and operating-system requirements must be checked

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-MXI-2 installs in a PCI-based computer and provides the host-side interface in an external VXI or VME control system. The corresponding VXI-MXI-2 or VME-MXI-2 extender installs in the instrument mainframe.

NI-VXI provides resource management, configuration utilities, and programming routines for this architecture. Integration should be planned around the specific hardware variant and software release rather than assuming that documentation for PCI-MXI-2 Universal applies unchanged.

Host interface for PCI-based external VXI/VME control systems.
Documented system configurations use VXI-MXI-2 or VME-MXI-2 mainframe extenders.
NI-VXI supports resource management, interactive configuration, and VXI/VME programming.

Verified specifications

Technical data

Verified product specifications.

Host bus	PCI
Interface technology	MXI-2
System role	External host controller interface for VXI/VME systems

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI host computer

Installation platform for the PCI-MXI-2

PCI-MXI-2

Host-side MXI-2 interface

VXI-MXI-2 / VME-MXI-2

Mainframe-side extender

Confirm the exact board variant, PCI slot requirements, mainframe extender, cabling, and NI-VXI release before integration.
