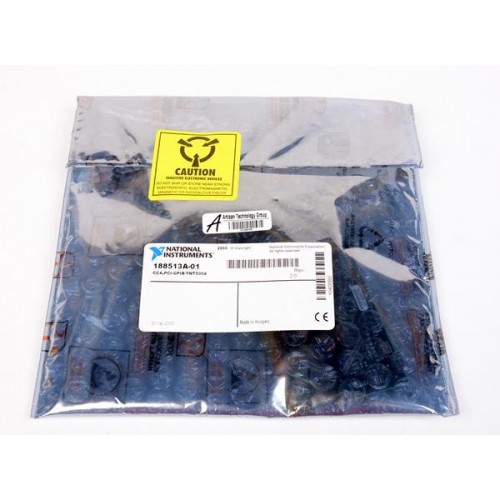

1 image: Click to enlarge

National Instruments · PCI

PCI-GPIB/TNT5004

The National Instruments PCI-GPIB/TNT5004 is the TNT5004-based version of the PCI-GPIB instrument control interface for computers with PCI expansion slots. NI identifies this version by the 188513x-01 assembly-number family.

ManufacturerNational Instruments

ModelPCI-GPIB/TNT5004

Part Number188513-01L

Product TypeGPIB instrument control interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-GPIB/TNT5004

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCI

Instrument interfaceGPIB / IEEE 488

Controller ASICTNT5004

Assembly family188513x-01; x denotes revision

Internal buffer256 bytes

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This board connects a PCI-equipped PC or workstation to GPIB instruments. The PCI-GPIB family provides a plug-and-play IEEE 488 interface with onboard bus-master DMA for data transfers.

The TNT5004 designation distinguishes this assembly from the TNT4882C-based PCI-GPIB. NI documents different assembly-number families for the two versions, making the printed board identification important when checking software support.

PCI host connection for GPIB instrument control.
TNT5004 GPIB controller ASIC with a documented 256-byte internal buffer.
PCI-GPIB family support for IEEE 488.1 handshaking and high-speed HS488 transfers.
Onboard bus-master DMA controller for data transfer.

Verified specifications

Technical data

Verified product specifications.

Host bus	PCI
Instrument bus	GPIB (IEEE 488)
GPIB ASIC	TNT5004
Internal buffer	256 bytes
Assembly-number family	188513x-01
Certification-listed assembly	188513-01L

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Computer expansion bus

PCI-GPIB/TNT5004

GPIB instrument control interface

Driver environment

NI identifies NI-488.2 and NI-VISA as software used with PCI-GPIB boards.

Check the printed assembly number and driver/operating-system compatibility before integration; TNT5004 boards are not supported by the Mac Classic NI-488.2 driver.
