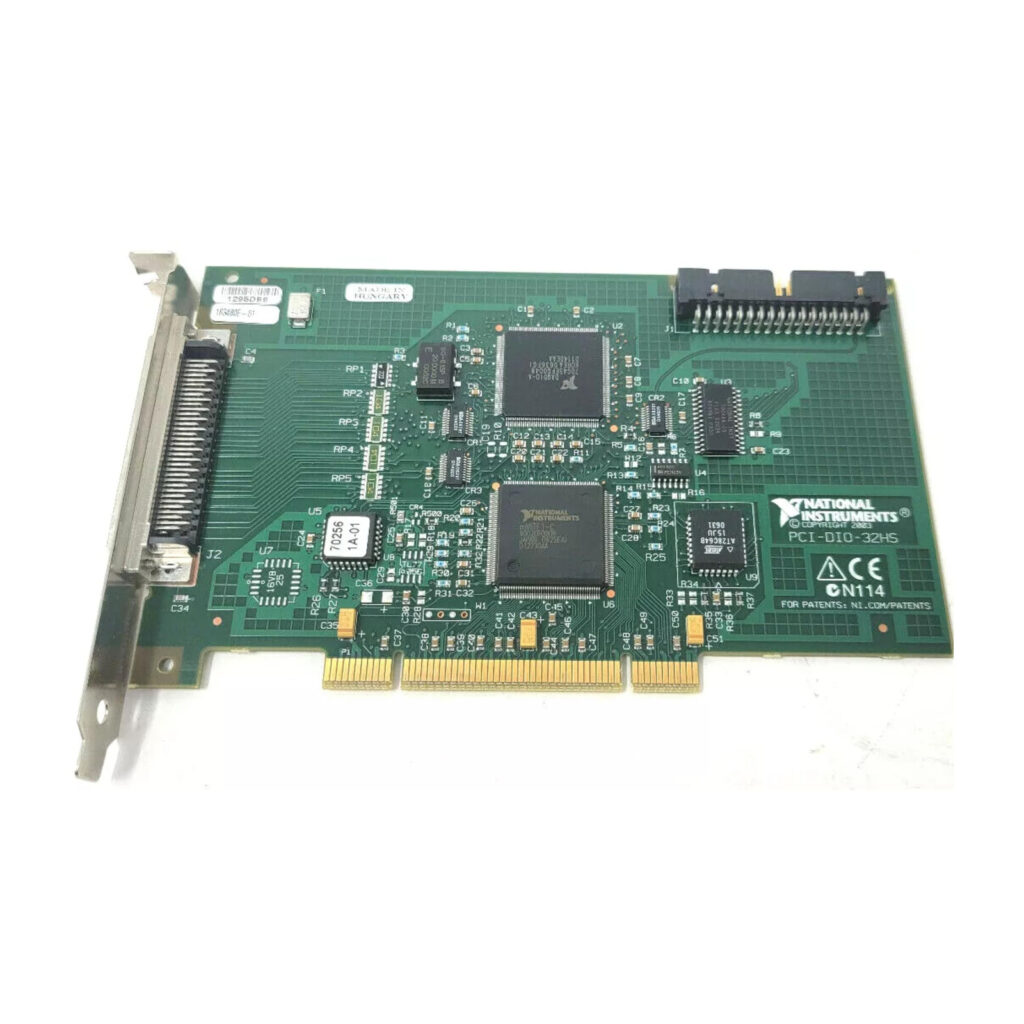

The NI PCI-DIO-32HS, also designated PCI-6533, is a PCI digital I/O card with 32 data lines.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
NI documents the 6533 family for handshaking and pattern I/O between a computer and peripheral equipment. Its archived application note includes a PCI-DIO-32HS buffered-input example.
Verified product specifications.
| Dedicated control/status lines | 4 output/control; 4 input/status |
|---|---|
| Input hysteresis | 500 mV |
| Input low voltage | 0 to 0.8 V |
| Input high voltage | 2 to 5 V |
| Maximum internally timed sample rate | 20; small transfers limited to FIFO size MHz |

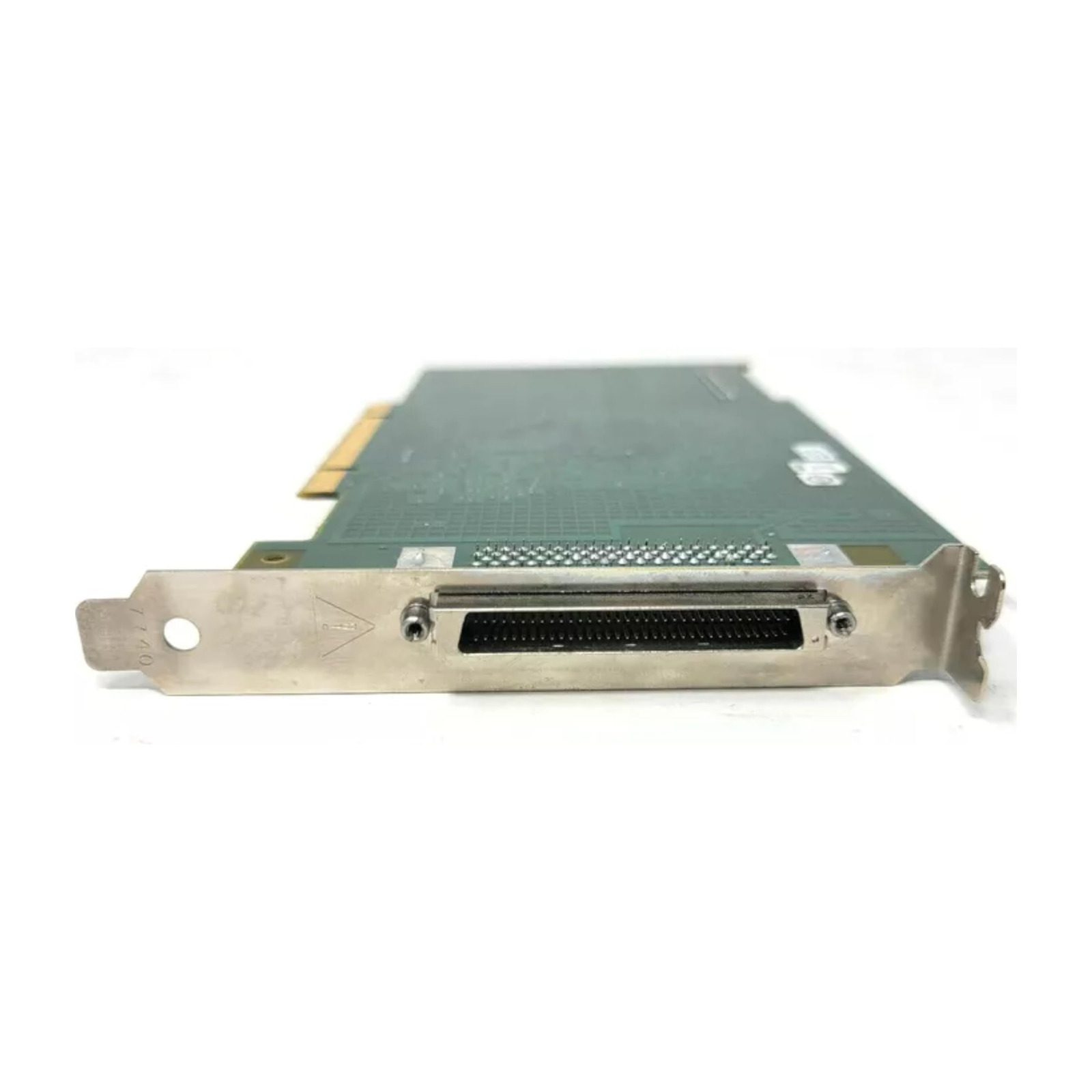

| I/O connector | 68-pin male SCSI-II |
| Dimensions excluding connectors | 17.5 × 10.7 cm |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Digital I/O
PCI DIO-32HS is explicitly included in the supported digital I/O devices table for NI-DAQmx 17.6.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI lists PCI-6533 with PCI-DIO-32HS in parentheses.
NI provides a dedicated PCI-DIO-32HS drawing page with PDF and DXF drawings and 3D CAD formats.
The NI-DAQmx 17.6 readme explicitly lists PCI DIO-32HS hardware. This verifies support for that release, not every driver and operating-system combination.
