PCI-8532

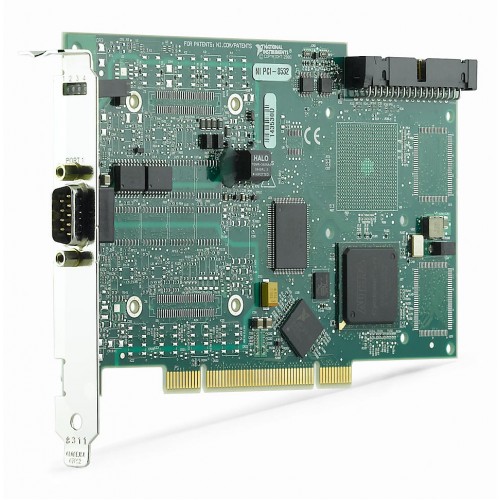

1 image: Click to enlarge
National Instruments · PCI

PCI-8532

The NI PCI-8532 is a single-port PCI interface for connecting a PC to a DeviceNet network. It supports programmable master/scanner or slave operation using NI-Industrial Communications for DeviceNet.

ManufacturerNational Instruments
ModelPCI-8532
Part Number781062-01
Product Type1-port DeviceNet interface device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8532

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI
DeviceNet ports1
Network rolesMaster/scanner or slave
Driver-supported rates125, 250, and 500 kb/s
Network connector9-pin male D-sub
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-8532 provides PC-based DeviceNet communication through a PCI bus connection. Its programmable network role allows the host application to act as a master/scanner or slave.

NI identifies this PC-based architecture for applications that do not require deterministic communication timing or remote deployment. Software development uses NI-Industrial Communications for DeviceNet; check the relevant driver, operating-system, and LabVIEW compatibility before integration.

  • Single DeviceNet port on a PCI interface card.
  • Programmable master/scanner and slave capabilities.
  • Uses NI-Industrial Communications for DeviceNet for application development.
  • Supports importing EDS files for DeviceNet application development.
Verified specifications

Technical data

Verified product specifications.

Host busPCI
Port count1 port
Driver-supported DeviceNet baud rates125, 250, 500 kb/s
CAN transceiver maximum baud rate1 Mb/s
I/O connector9-pin male D-sub
PCI board dimensions10.67 × 16.76 cm
Operating temperature0 to 55 °C
Storage temperature-20 to 70 °C
Operating humidity10 to 90, noncondensing % RH
Maximum altitude2000 m
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host bus

PCI-8532

Single-port DeviceNet interface

Software ecosystem

NI-Industrial Communications for DeviceNet

The 1 Mb/s transceiver rating is not the driver-supported DeviceNet rate: NI specifies 125, 250, and 500 kb/s.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-8532 Product PageProduct Page · ni.com
Open →
PCI/PXI-8532 SpecificationsSpecifications · ni.com
Open →
NI-Industrial Communications for DeviceNet DownloadDriver Download · ni.com
Open →
NI DeviceNet and LabVIEW Version CompatibilityTechnical resource
Open →
NI Hardware and Software Necessary for a DeviceNet ApplicationTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PCI-8532 operate as a DeviceNet master or slave?

Yes. NI documents programmable master/scanner and slave capabilities for the PCI-8532.

Does the PCI-8532 support 1 Mb/s DeviceNet communication?

The CAN transceiver is rated up to 1 Mb/s, but NI-Industrial Communications for DeviceNet supports only 125, 250, and 500 kb/s.

Can the PCI-8532 import EDS files?

Yes. NI explicitly identifies the PCI-8532 as supporting EDS file import.
