PCI-8531
1 image: Click to enlarge
National Instruments · PCI

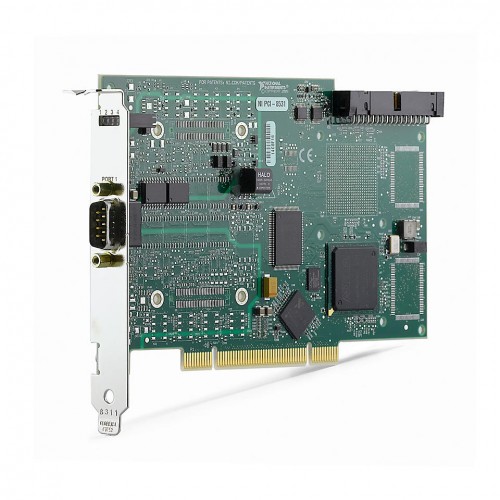

PCI-8531

The NI PCI-8531 connects a PCI-based PC to a CANopen network through one high-speed port. It uses NI-Industrial Communications for CANopen for communication and control.

ManufacturerNational Instruments
ModelPCI-8531
Part Number781060-01
Product Type1-port CANopen interface device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8531

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI
CANopen ports1
Maximum data rate1 Mbit/s
DriverNI-Industrial Communications for CANopen
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for PC-compatible computers with PCI Local Bus slots, the PCI-8531 provides access to CANopen devices from a host PC. NI documents it as part of the CANopen hardware family supported by NI-Industrial Communications for CANopen.

The interface exchanges process data objects and service data objects according to CiA DS 301. Its configuration tools include a batch SDO editor, EDS file integration, and LSS services for slave-node configuration.

  • PDO and SDO transmission and reception according to CiA DS 301.
  • Batch SDO editing with EDS integration and LSS configuration services.
  • Supports CANopen rates of 10, 20, 50, 125, 250, 500, and 800 kbit/s, plus 1 Mbit/s.
Verified specifications

Technical data

Verified product specifications.

Manufacturer part number781060-01
Bus connectionPCI
CANopen channel count1 channel
Maximum data rate1 Mbit/s
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI Local Bus

PC host interface

PCI-8531

CANopen network interface

Software stack

NI-Industrial Communications for CANopen

Check the selected driver release's operating-system and LabVIEW requirements before integrating the card.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI-8531 Official Product PageProduct Page · ni.com
Open →
CANopen Hardware OverviewDriver Help · ni.com
Open →
Where Can I Find the PXI/PCI-8531 Datasheet?Documentation Guide · knowledge.ni.com
Open →
Supported Hardware and Software for NI-Industrial Communications for CANopenTechnical resource
Open →
The Basics of CANopenTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which driver supports the PCI-8531?

NI-Industrial Communications for CANopen supports the PCI-8531.

What host computer interface does it require?

NI specifies a PC-compatible computer with PCI Local Bus slots.

Is there a standalone PCI-8531 datasheet or manual?

NI's documentation guide states that there is no standalone official datasheet or manual. It directs users to the PCI-CANopen hardware specifications and overview within CANopen Help.
