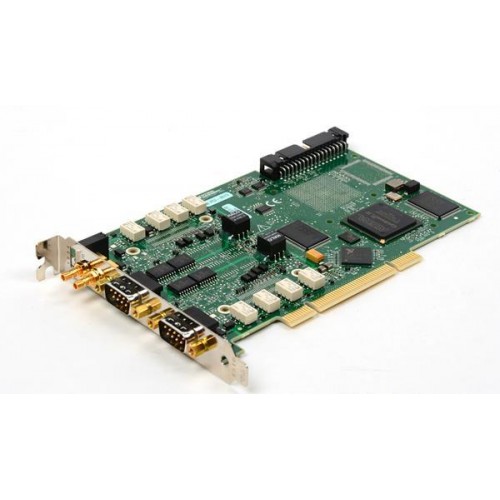

The NI PCI-8513/2 is a two-port PCI CAN interface with software-selectable physical layers for NI-XNET applications.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-8513/2 connects a PCI host to CAN networks using onboard software-selectable transceivers. Its NI-XNET device-driven DMA engine transfers frames and signals between the interface and application without CPU interrupts.
Verified product specifications.
| CAN ports | 2 |
|---|---|
| Host interface | PCI |
| Operating temperature | 0 to 55 °C |
| External timing and triggering | Supported |
| High-speed CAN termination | 120, software-controlled Ω |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Two-port CAN interface
NI-XNET
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI explicitly lists the PCI-8513/2 among its CAN FD-capable interfaces.
Yes. NI specifies external 8–18 V power for PCI-8513 single-wire CAN operation.
No. Revision C and earlier use the NXP AU5790; revision D and later use the ON Semiconductor NCV7356. NI states that hardware specifications and the software interface remain unchanged.
