National Instruments · PCI

PCI-8512

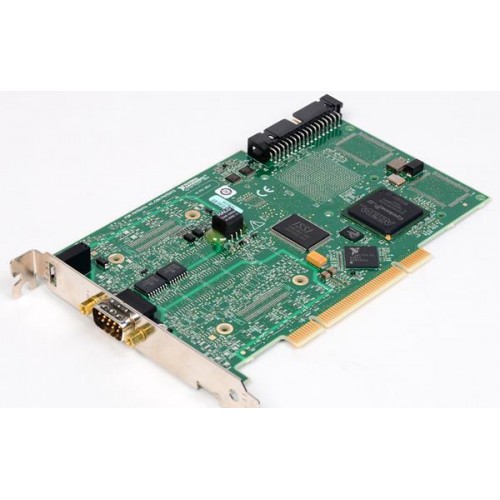

The National Instruments PCI-8512 is a PCI high-speed/FD CAN interface for NI-XNET applications. Its device-driven DMA engine transfers CAN frames and signals between the interface and host application without CPU interrupts.

ManufacturerNational Instruments

ModelPCI-8512

Product TypeHigh-speed/FD CAN interface device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8512

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCI

NetworkHigh-speed CAN / CAN FD

Driver familyNI-XNET

Operating temperature0 to 55 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-8512 connects a PCI host to a CAN network for frame- and signal-based development. NI identifies hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and automation control as product applications.

Within NI-XNET, signal databases support translating network frames into engineering-level signals. Supported database formats include FIBEX, CANdb (.DBC), and NI-CAN (.NCD).

Device-driven DMA reduces host CPU interrupt overhead during CAN data transfers.
NI-XNET APIs support frame- and signal-oriented application development.
External timing and triggering support.

Verified specifications

Technical data

Verified product specifications.

Host bus	PCI
Transceiver by hardware revision	NXP TJA1043 for revision G and later; TJA1041 for earlier revisions
Dimensions	10.67 × 16.76 cm
Operating ambient temperature	0 to 55 °C
Operating relative humidity	10 to 90, noncondensing % RH
RTSI/front-panel synchronization trigger lines	7 input/output; TTL

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI / NI-XNET

Host bus and network-interface software family

PCI-8512

High-speed/FD CAN interface

Software workflow

NI-XNET provides APIs, a Bus Monitor, and a Database Editor for network application development.

Confirm the installed port variant and hardware revision before selecting a CAN FD configuration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-8512 Product PageOfficial Product Page · ni.com

Open →

PCI-8512 SpecificationsSpecifications · ni.com

Open →

NI-XNET Hardware and Software Installation GuideInstallation Guide · download.ni.com

Open →

NI-XNET CAN, LIN, and FlexRay Platform OverviewTechnical resource

Open →

PCI-8512 ASM1083 Bridge Compatibility TroubleshootingTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does this record identify the one-port or two-port version?

The supplied record does not establish the installed variant. NI lists 780683-01 as the one-port PCI-8512 and 780683-02 as the two-port PCI-8512/2; verify the board label.

Which transceiver does the PCI-8512 use?

Revision G and later use the NXP TJA1043; earlier revisions use the TJA1041. Check the hardware revision on the board label.

Does it require external CAN bus power?

NI lists the PCI-8512 high-speed CAN interface as internally powered.
