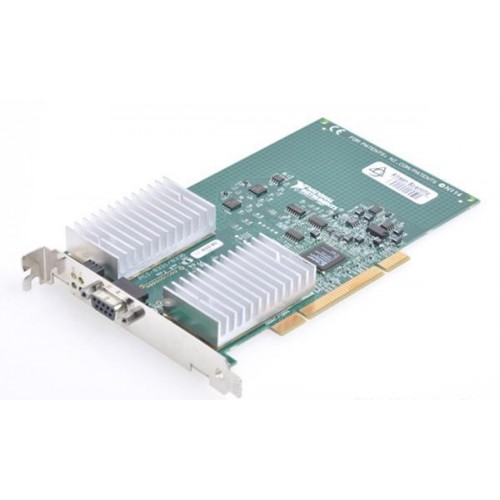

National Instruments PCI-8331 Copper MXI-4 PCI interface card
1 image: Click to enlarge
National Instruments · PCI host interface for PXI/CompactPCI expansion

PCI-8331

The National Instruments PCI-8331 is the host-side PCI card for a copper MXI-4 connection to a PXI-8331 in a PXI/CompactPCI expansion chassis.

ManufacturerNational Instruments
ModelPCI-8331
Product TypeCopper MXI-4 PCI interface card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8331

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host connectionPCI
Link mediumCopper MXI-4
Chassis-side pairingPXI-8331
Maximum cable length10 m
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-8331 extends a computer's PCI bus to an external instrumentation chassis through MXI-4. Its PCI-to-PCI bridge architecture is transparent to device drivers.

A working connection requires the matching PXI-8331, a copper MXI-4 cable, a suitable host, an expansion chassis, and the required software. The PCI-8331 is one component of that system, not the complete link.

  • PCI-to-PCI bridge architecture for external bus expansion.
  • Copper connection to the matching PXI-8331 interface.
  • MXI-4 copper links support sustained throughput up to 78 MB/s, depending on system configuration.
Verified specifications

Technical data

Verified product specifications.

Interface familyMXI-4
Link mediumCopper
Maximum cable length10 m
Sustained link throughputUp to 78; system-dependent MB/s
Cable connector4-pin serial D-Sub
Typical card weight0.19 kg
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

MXI-4

Bus-extension family

PCI-8331

Host-side PCI interface

PXI-8331

Matching expansion-chassis interface

Use the documented PXI-8331 pairing and copper cable; MXI-4 and MXI-Express boards cannot be mixed.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

MXI-4 Series User Manual and SpecificationsUser Manual And Specifications · download.ni.com
Open →
Set Up Your MXI-4 SystemSetup Guide · download.ni.com
Open →
MXI-Express x1 Series User Manual — MXI-4 ComparisonTechnical Comparison · docs-be.ni.com
Open →
NI guidance on mixing MXI generationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which chassis-side card pairs with the PCI-8331?

NI documents the PCI-8331 and PXI-8331 as an allowed MXI-4 pair, connected with a copper MXI-4 cable.

Can the PCI-8331 connect to an MXI-Express interface?

No. NI states that MXI-4 and MXI-Express x1 boards cannot be mixed because their communication protocols differ.

How does the PCI-8331 differ from the PCI-8336?

The PCI-8331 uses copper cabling with a PXI-8331. The PCI-8336 uses fiber-optic cabling with a PXI-8336.
