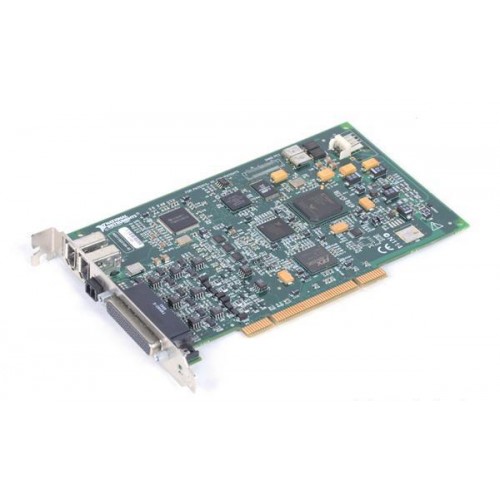

The NI PCI-8254R combines an IEEE 1394a camera interface and reconfigurable digital I/O on a PCI board.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
NI Vision Acquisition Software 18.5 explicitly lists the PCI-8254R under NI-IMAQ I/O support for reconfigurable I/O control. That release also provides NI-IMAQdx for IIDC/DCAM-compliant IEEE 1394 cameras.
Verified product specifications.
| Host interface | PCI |
|---|---|
| TTL inputs / outputs | 2 / 10 channels |
| Isolated inputs / outputs | 13 current-sinking / 4 current-sourcing channels |
| Digital I/O connector | 44-pin D-SUB |
| Isolated supply | 5 to 30 VDC |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host expansion interface
Camera interface and reconfigurable I/O
NI-IMAQ I/O in Vision Acquisition Software 18.5
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI Vision Acquisition Software 18.5 lists the PCI-8254R as supported by NI-IMAQ I/O. This is release-specific evidence, not confirmation of support in every software version.
Yes. NI explicitly identifies the PCI-8254R as supported by the NI Vision I/O Terminal Block and Prototyping Accessory, which includes screw terminals and signal LEDs for prototyping and troubleshooting.
