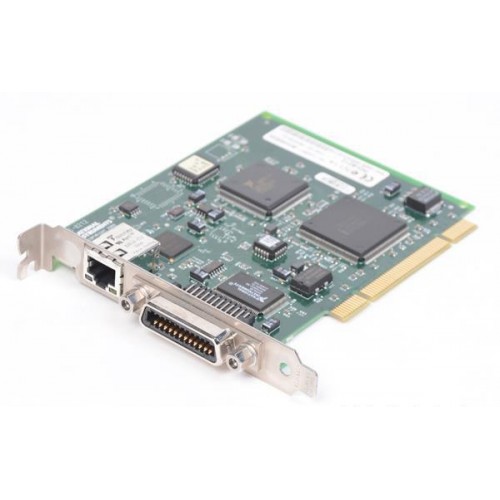

The National Instruments PCI-8212 combines a GPIB controller and a 10/100 Ethernet interface on one PCI board for networked instrumentation systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Verified product specifications.
| Ethernet data rate modes | 10 or 100 Mbit/s |
|---|---|
| GPIB connector | IEEE 488 standard 24-pin |
| Ethernet connector | RJ-45 |
| Board dimensions | 12.9 × 10.6 cm |
| Power requirement | 2.5 W at +5 VDC |
| Operating ambient temperature | 0 to 55 °C |
| Operating relative humidity | 10 to 90, noncondensing % |
| Ethernet controller | Intel 82559 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host expansion bus
Combined GPIB and Ethernet interface
NI-488.2 16.0 lists PCI-8212 GPIB support for Windows 10, 8.1, 8, 7 SP1, Server 2012 R2, and Server 2008 R2 SP1. Ethernet support must be checked separately.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. It combines both interfaces in a single PCI slot.
It supports 10Base-T and 100Base-TX networks.
Yes. NI lists the PCI-8212 for GPIB communication with NI-488.2 16.0 on the Windows versions specified in that readme. This does not verify Ethernet driver support or support in other driver releases.
