National Instruments · PCI

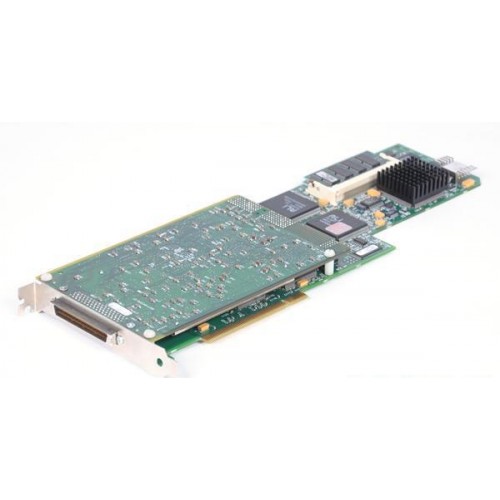

PCI-7030/6040E

The National Instruments PCI-7030/6040E combines a dedicated 7030 real-time processor board with 6040E data acquisition hardware. It belongs to NI's PCI RT Series plug-in architecture for LabVIEW Real-Time applications.

ManufacturerNational Instruments

ModelPCI-7030/6040E

Product TypeReal-time multifunction data acquisition plug-in board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-7030/6040E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPCI RT Series plug-in board

Architecture7030 processor board with 6040E DAQ daughterboard

Processor133 MHz 486

Host communicationShared-memory communication between host and RT Engine applications

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-7030/6040E is an embedded real-time target on a PCI plug-in board, rather than simply a host-driven PCI-6040E DAQ device. Its 7030 processor executes the real-time application alongside the integrated 6040E measurement hardware.

NI's historical LabVIEW Real-Time documentation describes a Windows host for development and PCI/PXI-7030 operation, with shared-memory VIs for communication between host and target. Software versions must be checked carefully: NI lists the PCI-7030 among devices not supported by NI-DAQmx.

Dedicated onboard 133 MHz 486 processor for real-time application execution.
Integrated 6040E DAQ daughterboard paired with the 7030 processor board.
LabVIEW Real-Time host/target programming architecture.
Shared-memory VIs support data exchange between host and RT Engine applications.

Verified specifications

Technical data

Verified product specifications.

Host interface	PCI
Processor clock frequency	133 MHz
Processor architecture	486
DAQ subsystem	6040E daughterboard

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI RT Series

Real-time plug-in hardware platform

PCI-7030/6040E

7030 processor with integrated 6040E DAQ hardware

Development environment

Historical LabVIEW Real-Time releases use a Windows host with compatible NI-DAQ versions.

Verify the exact LabVIEW RT and NI-DAQ combination; do not assume standalone PCI-6040E performance or driver support applies.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Real-Time Release NotesRelease Notes · ni.com

Open →

LabVIEW Real-Time Release Notes — Shared-Memory VIsRelease Notes · ni.com

Open →

NI-DAQmx 8.5 Readme — Device Support LimitationsDriver Readme · download.ni.com

Open →

LabVIEW Real-Time Release Notes and NI-DAQ Version TableTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PCI-7030/6040E the same as a PCI-6040E?

No. The PCI-7030/6040E combines a 7030 processor board and 6040E DAQ daughterboard. The dedicated processor runs the real-time application, so standalone PCI-6040E specifications should not automatically be treated as system-level performance specifications.

Does NI-DAQmx support the PCI-7030?

NI's NI-DAQmx 8.5 readme lists PCI-7030 RT Series devices as unsupported by NI-DAQmx. Check historical LabVIEW RT documentation for the required NI-DAQ version rather than assuming a current driver will work.

How does the real-time application exchange data with the host?

NI documents Shared Memory VIs for communication between host applications and RT Engine applications on PCI/PXI-7030 boards.
