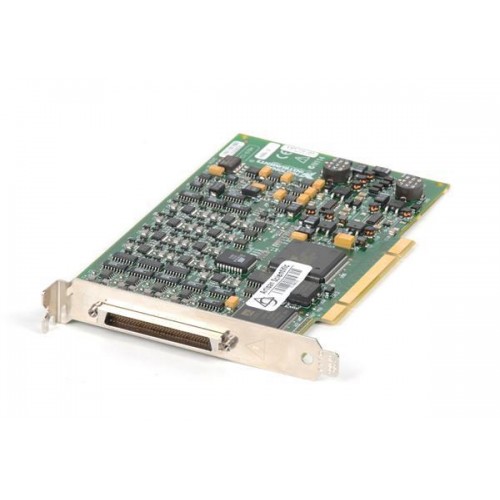

National Instruments PCI-6704 Static analog output board
1 image: Click to enlarge
National Instruments · PCI

PCI-6704

The National Instruments PCI-6704 is a 16-bit, software-timed PCI analog output board with 16 voltage outputs, 16 current outputs, and eight digital I/O lines.

ManufacturerNational Instruments
ModelPCI-6704
Part Number777306-01 · 183689-01
Product TypeStatic analog output board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6704

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs16 voltage and 16 current channels
Resolution16 bits
TimingStatic, software-timed output
Voltage range−10.1 to +10.1 V
Current range0.1 to 20.2 mA
Digital I/OEight TTL-compatible lines
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6704 belongs to NI's 670x software-timed output family. Its voltage and current outputs can operate independently at the same time, allowing one board to provide both types of analog setpoint.

Signal connections use a 68-pin connector. NI recommends the SH68-68-D1 shielded cable and SCB-68 connector block for NI 670x devices.

  • Separate voltage and current output channels support mixed analog output requirements.
  • Current outputs source current without an external excitation supply.
  • Analog outputs support independent, user-defined power-on values.
  • Each digital line can be configured independently as an input or output.
Verified specifications

Technical data

Verified product specifications.

Voltage output channels16 channels
Current output channels16 channels
Analog output resolution16 bits
Output timingStatic, software-timed
Voltage output range−10.1 to +10.1 V
Current output range0.1 to 20.2 mA
Current output compliance0 to 10; not clamped V
Digital I/O8 TTL-compatible channels; power-on state is high-impedance input
I/O connector68-pin male
Board dimensions excluding connectors9.9 × 17.5 cm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6704

Static voltage and current output board

Signal connection

NI recommends SH68-68-D1 cabling and SCB-68 termination.

Outputs are not electrically isolated from high voltages. Review grounding and common-mode limits before connecting loads.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI-6704 Official Product PageProduct Page · ni.com
Open →
NI 6703/6704 SpecificationsSpecifications · docs-be.ni.com
Open →
NI 6703/6704 User ManualUser Manual · docs-be.ni.com
Open →
NI 6703/6704 Update Latency and Settling TimeTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PCI-6704 intended for hardware-timed waveform generation?

No. It is a static, software-timed analog output device.

How does the PCI-6704 differ from the PCI-6703?

Both have 16 voltage outputs and eight digital I/O lines. The PCI-6704 adds 16 current outputs.

Do programmed power-on values apply immediately?

Not immediately. Voltage outputs reach full accuracy within 1 second of power-on board reset and may float beforehand. Current outputs reach full accuracy within 7 seconds.
