National Instruments PCI-6703 Static analog voltage output board

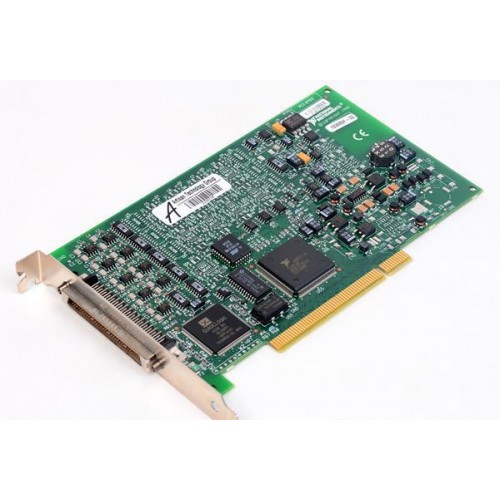

1 image: Click to enlarge
National Instruments · PCI

PCI-6703

The National Instruments PCI-6703 is a 16-bit static analog output board for software-timed voltage output applications. It provides 16 voltage outputs with a ±10 V range and eight digital I/O lines.

ManufacturerNational Instruments
ModelPCI-6703
Part Number778316-01
Product TypeStatic analog voltage output board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6703

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Voltage outputs16 channels
Analog resolution16 bits
Voltage range±10 V
TimingStatic, software-timed output
Digital I/O8 lines
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6703 belongs to the NI 670x analog output family and connects through PCI. Its analog channels provide voltage output; the additional current-output channels described for the NI 6704 are not features of the PCI-6703.

Output changes are commanded by software rather than a hardware sample clock. NI explains that an internal multiplexed DAC refreshes the output channels, so software timing, channel update latency, and settling time must be considered separately when planning output changes.

  • 16 voltage output channels with 16-bit resolution.
  • Bipolar ±10 V voltage output range.
  • Eight digital I/O lines alongside the analog outputs.
  • Software-commanded static analog output operation.
Verified specifications

Technical data

Verified product specifications.

Host interfacePCI
Voltage output channels16 channels
Analog output resolution16 bits
Nominal voltage output range±10 V
Output timingStatic, software-timed
Digital I/O lines8 lines
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host bus

NI 670x

Software-timed analog output family

PCI-6703

16-channel voltage output board

Check driver-version support for the intended operating system before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI-6703 Official Product PageProduct Page · ni.com
Open →
NI 670x Software-Timed Analog Output Data SheetData Sheet · ni.com
Open →
NI 6703/6704 User ManualUser Manual · docs-be.ni.com
Open →
NI 6703/6704 Update Rate, Channel Latency, and Settling TimeTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
