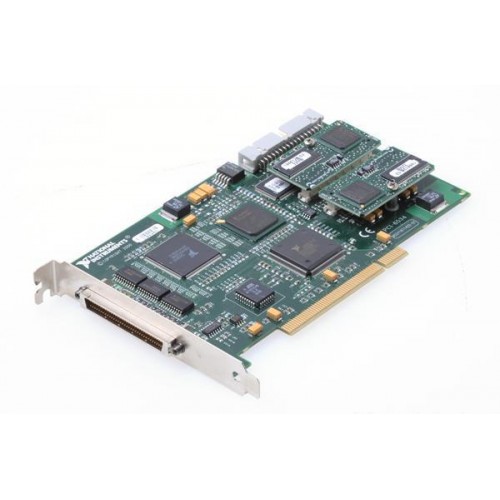

National Instruments PCI-6534 High-speed digital I/O and handshaking card
1 image: Click to enlarge
National Instruments · PCI

PCI-6534

The National Instruments PCI-6534 is a PCI digital I/O card for pattern transfers, handshaking, and change detection. It provides 32 digital lines and two independent data groups with onboard memory.

ManufacturerNational Instruments
ModelPCI-6534
Product TypeHigh-speed digital I/O and handshaking card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6534

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Digital I/O32 TTL/CMOS lines
Transfer widths8, 16, or 32 bits
Onboard memory64 MB total; two 32 MB modules
Maximum transfer rateUp to 80 MB/s in continuous pattern I/O or burst handshaking
