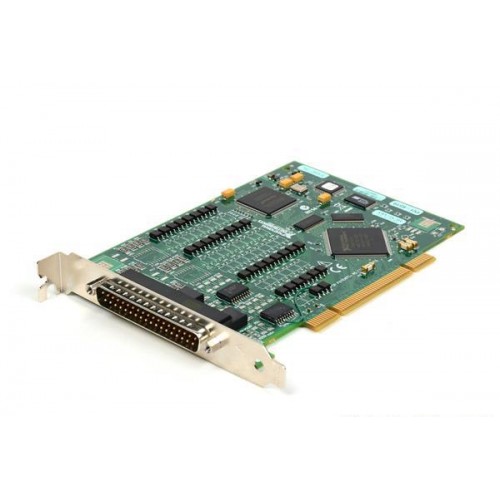

NI (National Instruments) PCI-6519 32-Channel, ±30 V, 16 Sink/Source Inputs, 16 Sink Outputs, Bank-Isolated Digital I/O Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-6519

The NI PCI-6519, part number 779085-01, is a 32-channel industrial PCI digital I/O device with 16 sink/source inputs, 16 sinking outputs and bank isolation.

ManufacturerNI (National Instruments)
ModelPCI-6519
Part Number779085-01
Product Type32-Channel, ±30 V, 16 Sink/Source Inputs, 16 Sink Outputs, Bank-Isolated Digital I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6519

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPCI
Digital Input Only Channels16
Digital Output Only Channels16
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range-30 V to 30 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6519 is a computer-based industrial digital I/O device for a PCI host system. It provides 16 digital input-only channels and 16 digital output-only channels through a D-SUB front connection, with single-ended signaling and no bidirectional channels.

The inputs support sinking or sourcing configurations, while the outputs are sinking. Programmable power-up states and digital I/O watchdogs allow outputs to be assigned a configurable safe state following a computer or application fault.

  • 32 dedicated digital I/O channels: 16 sink/source inputs and 16 sinking outputs.
  • Bank-isolated digital I/O with 30 VDC isolation and 24 V logic levels.
  • Each input bank can be wired in a sourcing or sinking configuration.
  • Programmable power-up states support defined output behavior at startup.
  • Digital I/O watchdogs can switch outputs to a configurable safe state after a computer or application fault.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPCI
Number of Digital Input Only Channels16
Number of Digital Output Only Channels16
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range-30 V to 30 V
Single-Ended Digital I/O Channel Current Drive475 mA
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPCI
Current Flow DirectionSinking Input, Sourcing Input, Sinking Output
Digital I/O Isolation30 VDC Bank Isolation
Digital I/O Logic Levels24 V
Front Connection TypeD-SUB
Signaling TypeSingle-Ended
Supported Hardware PlatformComputer-Based Device
NI part numbers779085-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-6519

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital input and output channels does the PCI-6519 have?

It has 16 digital input-only channels and 16 digital output-only channels. It has no bidirectional digital channels.

Does the PCI-6519 support sinking and sourcing?

The input banks can be wired for sinking or sourcing operation. The outputs are sinking outputs.

What bus and front connection does the PCI-6519 use?

It uses a PCI host bus and a D-SUB front connection.

What isolation and logic levels are provided?

The digital I/O provides 30 VDC bank isolation and 24 V logic levels.

How can outputs respond to a computer or application fault?

Digital I/O watchdogs can switch the outputs to a configurable safe output state following a computer or application fault.
