NI (National Instruments) PCI-6515 64-Channel, ±30 VDC, 32 Sink/Source Inputs, 32 Sink Output, Bank-Isolated Digital I/O Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-6515

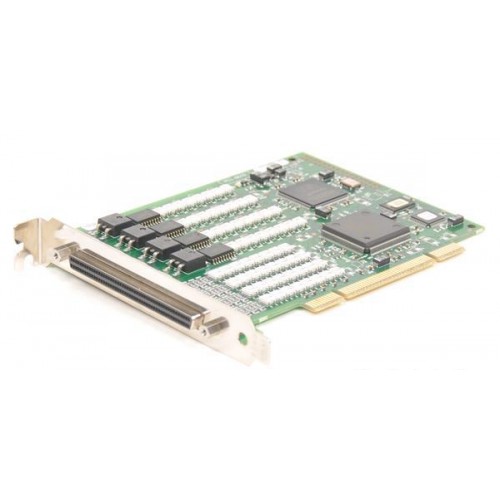

The NI PCI-6515 is a 64-channel, bank-isolated industrial digital I/O device for PCI-based computers. It provides 32 sink/source digital inputs and 32 sinking digital outputs.

ManufacturerNI (National Instruments)
ModelPCI-6515
Part Number778835-01
Product Type64-Channel, ±30 VDC, 32 Sink/Source Inputs, 32 Sink Output, Bank-Isolated Digital I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6515

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPCI
Digital Input Only Channels32
Digital Output Only Channels32
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range-30 V to 30 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6515 provides separate input and output channels rather than bidirectional lines: 32 digital input-only channels and 32 digital output-only channels. Input banks can be wired for sinking or sourcing operation, while the outputs are sinking.

The device uses eight banks of isolated channels with 30 VDC bank isolation and 24 V logic levels. Programmable power-up states and digital I/O watchdogs allow configurable output behavior, while software-selectable input filters help reject glitches and debounce switches and relays.

  • 64 digital I/O channels divided into 32 inputs and 32 outputs.
  • Sink/source input configurations and sinking digital outputs.
  • Bank-isolated digital I/O with 24 V logic levels.
  • Programmable power-up states and digital I/O watchdogs for configurable output behavior during computer or application faults.
  • Software-selectable input filters for glitch rejection and switch or relay debouncing.
  • PCI host interface with a SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPCI
Number of Digital Input Only Channels32
Number of Digital Output Only Channels32
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range-30 V to 30 V
Single-Ended Digital I/O Channel Current Drive125 mA
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPCI
Current Flow DirectionSinking Input, Sourcing Input, Sinking Output
Digital I/O Isolation30 VDC Bank Isolation
Digital I/O Logic Levels24 V
Front Connection TypeSCSI Type
Signaling TypeSingle-Ended
Supported Hardware PlatformComputer-Based Device
NI part numbers778835-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-6515

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital channels does the PCI-6515 have?

It has 64 channels: 32 digital input-only channels and 32 digital output-only channels. It has no bidirectional digital channels.

Does the PCI-6515 support sourcing or sinking signals?

Its digital inputs support sinking or sourcing configurations. Its digital outputs are sinking outputs.

What isolation does the PCI-6515 provide?

It provides 30 VDC bank isolation across eight banks of isolated channels. This is bank isolation, not individual channel-to-channel isolation.

What host and front connections does it use?

The PCI-6515 uses a PCI host connection and a SCSI-type front connection, with single-ended digital signaling.
