NI (National Instruments) PCI-6512 64-Channel, ±30 VDC, Source Outputs, Bank-Isolated Digital I/O Device

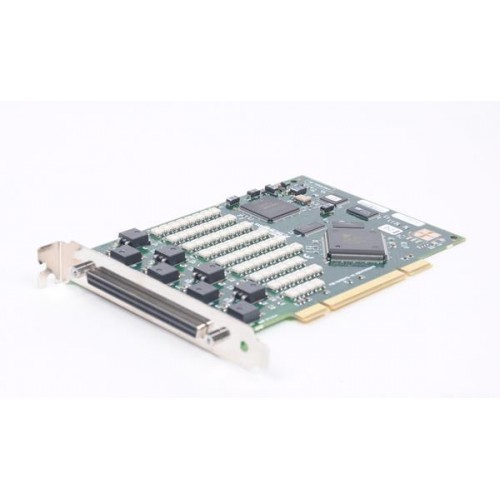

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

PCI-6512

The NI PCI-6512 is a 64-channel, bank-isolated digital output device for PCI-based computers. It provides sourcing outputs with a 0 V to 30 V output voltage range.

ManufacturerNI (National Instruments)

ModelPCI-6512

Part Number778968-01 · 778973-01

Product Type64-Channel, ±30 VDC, Source Outputs, Bank-Isolated Digital I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6512

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectorPCI

Output Voltage Range0 V to 30 V

Single-Ended Digital I/O Channel Current Drive350 mA

Operating Temperature Range0 °C to 55 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6512 provides an industrial digital output interface with 64 single-ended sourcing channels arranged in eight isolated banks. Its listed digital logic level is 24 V, with a specified output voltage range of 0 V to 30 V.

The board connects through a PCI bus and uses a SCSI-type front connection. It is output-only, with no digital input-only or bidirectional channels. Programmable power-up states and watchdog-controlled output states support configuration of output behavior during startup and computer or application faults.

64 sourcing digital output channels with a 0 V to 30 V output range.
Eight isolated channel banks with 30 VDC bank isolation.
Single-ended output signaling with a listed channel current drive of 350 mA.
Programmable power-up states configure initial output states in software.
Digital I/O watchdogs can switch outputs to a configurable safe state following a computer or application fault.

Verified specifications

Technical data

Verified product specifications.

Bus Connector	PCI
Output Voltage Range	0 V to 30 V
Single-Ended Digital I/O Channel Current Drive	350 mA
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PCI
Current Flow Direction	Sourcing Output
Digital I/O Isolation	30 VDC Bank Isolation
Digital I/O Logic Levels	24 V
Front Connection Type	SCSI Type
Signaling Type	Single-Ended
Supported Hardware Platform	Computer-Based Device
NI part numbers	778968-01, 778973-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-6512

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of outputs does the PCI-6512 provide?

It provides 64 single-ended sourcing digital outputs with a 0 V to 30 V output voltage range.

Can the PCI-6512 acquire digital inputs?

No. The listed configuration has no digital input-only channels and no bidirectional digital channels.

What bus and front connection does it use?

The PCI-6512 uses a PCI bus interface and a SCSI-type front connection. Verify the required cable and terminal connections against NI documentation.

Does it support configurable startup and fault output states?

Yes. Programmable power-up states configure initial outputs, and digital I/O watchdogs can switch outputs to a configurable safe state after a computer or application fault.
