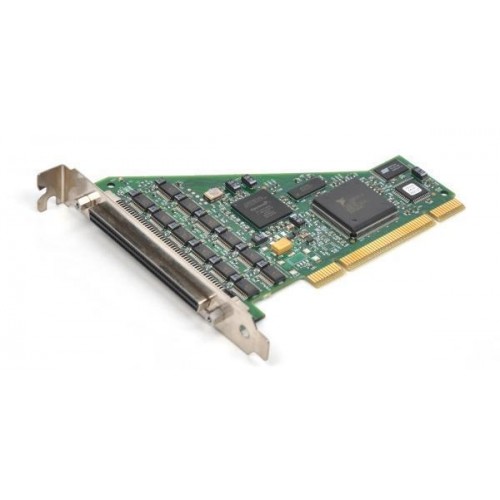

NI (National Instruments) PCI-6509 96-Channel, 5 V, TTL/CMOS, 24 mA, PCI Digital I/O Device

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

PCI-6509

The NI PCI-6509 is a PCI digital I/O device with 96 bidirectional channels, 5 V TTL/CMOS signaling and 24 mA current drive. Its ports can be configured for input or output.

ManufacturerNI (National Instruments)

ModelPCI-6509

Part Number778792-01 · 778936-01

Product Type96-Channel, 5 V, TTL/CMOS, 24 mA, PCI Digital I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6509

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectorPCI

Bidirectional Digital Channels96

Single-Ended Digital I/O Channel Current Drive24 mA

Bus ConnectionPCI

Signaling TypeSingle-Ended

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6509 adds 96 bidirectional digital channels to a PCI-based computer system. Each port can be configured for input or output, and outputs do not require an external power supply.

Programmable input filters help reject glitches and debounce digital switches and relays. Programmable power-up states and digital I/O watchdogs provide configurable output behavior during startup and computer or application faults.

96 bidirectional digital channels with port-level input or output configuration.
5 V TTL/CMOS digital I/O with 24 mA current drive.
Outputs operate without an external power supply and can directly drive external digital devices such as solid-state relays.
Programmable input filters help eliminate glitches and spikes and debounce switches and relays.
Programmable power-up states set initial output behavior.
Digital I/O watchdogs can switch outputs to a configurable safe state following a computer or application fault.

Verified specifications

Technical data

Verified product specifications.

Bus Connector	PCI
Number of Bidirectional Digital Channels	96
Single-Ended Digital I/O Channel Current Drive	24 mA
Bus Connection	PCI
Signaling Type	Single-Ended
Supported Hardware Platform	Computer-Based Device
NI part numbers	778792-01, 778936-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-6509

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital channels does the PCI-6509 provide?

It provides 96 bidirectional digital channels and has no dedicated input-only channels. Each port can be configured for input or output.

What bus does the PCI-6509 use?

The PCI-6509 uses a PCI bus connection. It should not be confused with the PXI-6509 mentioned in the legacy catalog description.

Do the outputs require an external power supply?

No external power supply is required for the device's outputs. Check the documented electrical limits before connecting a load.

Does the PCI-6509 support startup and fault output states?

Yes. Programmable power-up states define initial output states, and digital I/O watchdogs can switch outputs to a configurable safe state after a computer or application fault.
