NI (National Instruments) PCI-6503 24-Channel, 5 V, TTL/CMOS, 2.4 mA Digital I/O Device

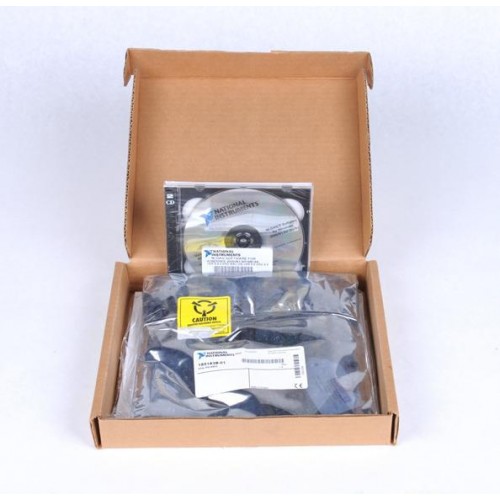

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-6503

The NI PCI-6503 is a PCI digital I/O card with 24 bidirectional channels and 5 V TTL/CMOS logic. It provides single-ended digital signaling for computer-based I/O systems.

ManufacturerNI (National Instruments)
ModelPCI-6503
Part Number185183-01 · 777690-01
Product Type24-Channel, 5 V, TTL/CMOS, 2.4 mA Digital I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6503

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPCI
Bidirectional Digital Channels24
Digital Input Voltage Range0 V to 5 V
Output Voltage Range0 V to 5 V
Single-Ended Digital I/O Channel Current Drive2.4 mA
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6503 uses a 24-bit programmable peripheral interface to provide 24 bidirectional digital channels. It is a computer-based PCI device in the NI digital I/O family.

The card uses single-ended signaling and an IDC front connection, with digital input and output voltage ranges of 0 V to 5 V. It supports unidirectional or bidirectional operation and handshaking with peripheral equipment.

  • 24 bidirectional digital I/O channels.
  • 5 V TTL/CMOS digital logic.
  • Single-ended channel current drive of 2.4 mA.
  • PCI bus interface with an IDC front connection.
  • Supports unidirectional or bidirectional operation and peripheral handshaking.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPCI
Number of Bidirectional Digital Channels24
Digital Input Voltage Range0 V to 5 V
Output Voltage Range0 V to 5 V
Single-Ended Digital I/O Channel Current Drive2.4 mA
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPCI
Digital I/O Logic Levels5 V TTL
Front Connection TypeIDC
Signaling TypeSingle-Ended
Supported Hardware PlatformComputer-Based Device
NI part numbers185183-01, 777690-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-6503

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital channels does the PCI-6503 provide?

It provides 24 bidirectional digital channels and has no dedicated input-only digital channels.

What digital voltage ranges does the PCI-6503 use?

The listed digital input and output voltage ranges are both 0 V to 5 V. The device uses 5 V TTL/CMOS logic.

What host interface and signal connection does it use?

The PCI-6503 uses a PCI host interface and an IDC front connection for digital signals.

Does the PCI-6503 support peripheral handshaking?

Yes. The existing verified product data identifies support for unidirectional or bidirectional operation and handshaking with peripheral equipment.
