PCI-6280

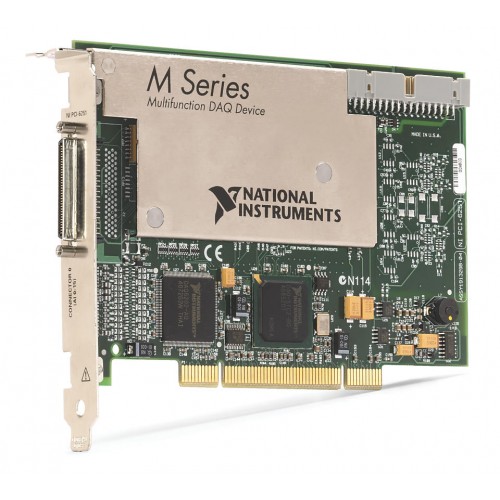

The NI PCI-6280 is a PCI multifunction I/O device with up to 16 single-ended or 8 differential analog inputs, 24 bidirectional digital channels and two counters/timers. Its analog input subsystem provides 18-bit resolution and a maximum sample rate of 625 kS/s.

ManufacturerNI (National Instruments)
ModelPCI-6280
Part Number779108-01
Product Type16 AI (18-Bit, 625 kS/s), 24 DIO PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6280

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels24
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels16
Number of Counters/Timers2
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy980 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6280 combines voltage measurement, digital I/O and counter/timer functions in a PCI device. It supports up to 16 single-ended or 8 differential analog input channels, with selectable bipolar ranges from ±0.1 V to ±10 V. It does not provide analog outputs.

The device includes correlated digital I/O, two 32-bit counters/timers, analog and digital triggering, and a 2047-sample analog input FIFO. It is bus powered and uses a VHDCI front connection. Analog input sampling is not simultaneous.

  • 18-bit analog input resolution with a maximum sample rate of 625 kS/s.
  • Up to 16 single-ended or 8 differential analog input channels.
  • 24 bidirectional digital channels and two counters/timers.
  • Analog and digital triggering with a 2047-sample analog input FIFO.
  • Seven selectable bipolar analog input ranges from ±0.1 V to ±10 V.
  • Bus-powered PCI interface with a VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels24
Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy980 μV
Analog Input FIFO Buffer Size2047 samples
Maximum Sample Rate625 kS/s
Simultaneous SamplingNo
EnclosedYes
Analog Input Resolution18 bits
Bus ConnectorPCI
Front Connection TypeVHDCI
Bus ConnectionPCI
Analog Input Voltage Range-0.1 V to 0.1 V, -0.2 V to 0.2 V, -0.5 V to 0.5 V, -1 V to 1 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)-5 V to 5 V, -10 V to 10 V
NI part numbers779108-01
