NI (National Instruments) PCI-6233 16-Bit, 250 kS/s, 16 AI, 24 V DIO Sinking, Bank-Isolated, PCI Multifunction I/O Device

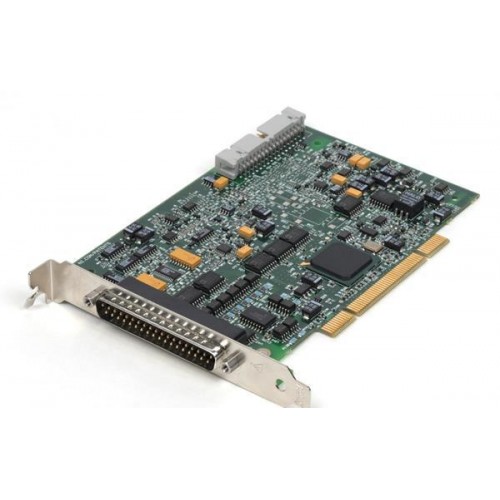

1 image: Click to enlarge
NI (National Instruments) · PCI

PCI-6233

The NI PCI-6233, part number 779619-01, is a bank-isolated PCI multifunction I/O device with 16-bit analog inputs, two analog outputs, digital inputs, sinking digital outputs and two counters/timers.

ManufacturerNI (National Instruments)
ModelPCI-6233
Part Number779619-01
Product Type16-Bit, 250 kS/s, 16 AI, 24 V DIO Sinking, Bank-Isolated, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6233

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Single-Ended Analog Input Channels16
Number of Counters/Timers2
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy3100 μV
Analog Input FIFO Buffer Size4095 samples
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6233 combines analog input, analog output, digital I/O and counter/timer functions on a PCI device. Its analog input section provides up to 16 single-ended or 8 differential channels, 16-bit resolution and a maximum sample rate of 250 kS/s. Analog input sampling is not simultaneous.

Two analog output channels complement six digital input-only channels, four sinking digital output-only channels and two counters/timers. The device has a D-SUB front connection and selectable analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.

  • 16-bit analog input resolution with up to 16 single-ended or 8 differential input channels.
  • Maximum analog input sample rate of 250 kS/s with a 4095-sample FIFO buffer.
  • Two analog output channels with a maximum update rate of 500 kS/s.
  • Six digital input-only channels and four sinking digital output-only channels.
  • Bank-isolated multifunction I/O with two counters/timers.
  • PCI bus connection, D-SUB front connection and four selectable analog input voltage ranges.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy3100 μV
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
Simultaneous SamplingNo
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorPCI
Front Connection TypeD-SUB
Number of Analog Output Channels2
Maximum Analog Update Rate500 kS/s
Bus ConnectionPCI
Current Flow DirectionSinking Output
Number of Digital Input Only Channels6
Number of Digital Output Only Channels4
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
NI part numbers779619-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6233

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the part number for the PCI-6233?

The listed NI part number is 779619-01.

How many analog input channels does the PCI-6233 have?

It supports up to 16 single-ended or 8 differential analog input channels with 16-bit resolution. Analog input sampling is not simultaneous.

What digital I/O channels are provided?

The PCI-6233 has six digital input-only channels and four digital output-only channels. The digital outputs are sinking outputs; there are no bidirectional digital channels.

What are the analog input voltage ranges?

The listed ranges are −0.2 V to +0.2 V, −1 V to +1 V, −5 V to +5 V and −10 V to +10 V.

Does the PCI-6233 include analog outputs and counters?

Yes. It provides two analog output channels with a maximum update rate of 500 kS/s and two counters/timers.

Ask SOHO AssistantProduct & compatibility help
