PCI-6154
1 image: Click to enlarge
NI (National Instruments) · PCI

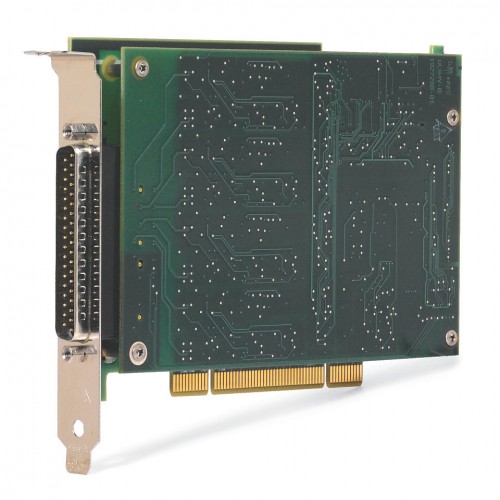

PCI-6154

The NI PCI-6154, part number 779340-01, is a PCI multifunction I/O device with four simultaneous-sampling analog inputs, four analog outputs, digital I/O, and two counters. Its analog inputs provide 16-bit resolution at up to 250 kS/s per channel.

ManufacturerNI (National Instruments)
ModelPCI-6154
Part Number779340-01
Product Type4 AI (16-Bit, 250 kS/s/ch), 4 AO, 6 DI, 4 DO, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6154

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Power InputBus Powered
Number of Counters/Timers2
Max Differential Analog Input Channels4
Analog Input Absolute Accuracy5279 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6154 combines analog acquisition, analog output, digital I/O, and counter functions on a PCI device. Its four differential analog inputs support simultaneous sampling with 16-bit resolution and a maximum rate of 250 kS/s per channel.

Selectable analog input ranges are ±10 V, ±5 V, ±2 V, and ±1 V. The device provides 60 V channel-to-channel analog input isolation, four analog outputs, six digital inputs, four digital outputs, and two counters. It is bus powered and uses a D-SUB front connection.

  • Four differential analog inputs with simultaneous sampling and 16-bit resolution.
  • Maximum analog input sample rate of 250 kS/s per channel.
  • Four analog outputs with a maximum update rate of 250 kS/s per channel.
  • Analog input ranges of ±10 V, ±5 V, ±2 V, and ±1 V, with 60 V channel-to-channel input isolation.
  • Six digital input channels, four digital output channels, and two counters/timers.
  • Bus-powered PCI interface with a D-SUB front connection.
Verified specifications

Technical data

Verified product specifications.

Supported Power InputBus Powered
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels4
Analog Input Absolute Accuracy5279 μV
Analog Input FIFO Buffer Size8190 samples
Maximum Sample Rate250 kS/s/ch
Analog Input Isolation60 V Ch-Ch Isolation
Simultaneous SamplingYes
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorPCI
Front Connection TypeD-SUB
Number of Analog Output Channels4
Maximum Analog Update Rate250 kS/s/ch
Bus ConnectionPCI
Analog Input Voltage Range-10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
NI part numbers779340-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.
