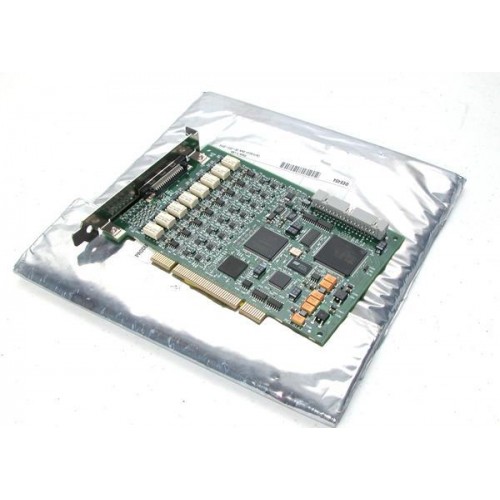

NI (National Instruments) PCI-6143 8 AI (16-Bit, 250 kS/s/ch), 8 DIO, PCI Multifunction I/O Device
1 image: Click to enlarge
NI (National Instruments) · PCI

PCI-6143

The NI PCI-6143, part number 778913-01, is a PCI multifunction I/O device with 8 simultaneously sampled differential analog inputs, 8 bidirectional digital channels and two counters/timers.

ManufacturerNI (National Instruments)
ModelPCI-6143
Part Number778913-01
Product Type8 AI (16-Bit, 250 kS/s/ch), 8 DIO, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6143

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy3613 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6143 combines simultaneous analog acquisition with digital I/O and counter/timer functions on a PCI device. Its eight differential analog inputs provide 16-bit resolution at a maximum sample rate of 250 kS/s per channel over a -5 V to +5 V input range.

The device includes eight bidirectional digital channels, two counters/timers and a VHDCI front connection. It draws power from the PCI bus and has no analog output channels.

  • Eight differential analog input channels with simultaneous sampling.
  • 16-bit analog input resolution with sampling up to 250 kS/s per channel.
  • Analog input voltage range of -5 V to +5 V.
  • Eight bidirectional digital channels and two counters/timers.
  • Bus-powered PCI interface with a VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy3613 μV
Analog Input FIFO Buffer Size2046 samples
Maximum Sample Rate250 kS/s/ch
Simultaneous SamplingYes
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorPCI
Front Connection TypeVHDCI
Bus ConnectionPCI
Analog Input Voltage Range-5 V to 5 V
NI part numbers778913-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6143

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
