PCI-6133

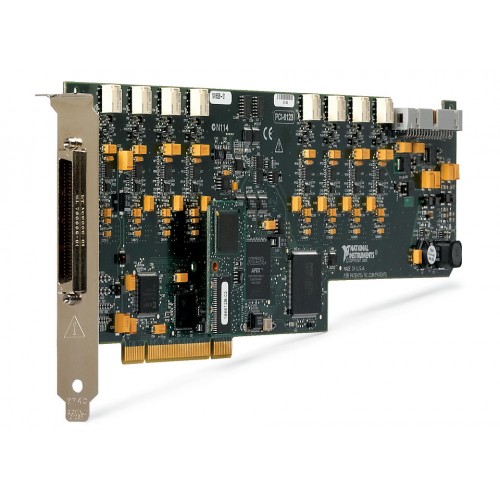

1 image: Click to enlarge
NI (National Instruments) · PCI

PCI-6133

The NI PCI-6133 is a simultaneous-sampling PCI multifunction I/O device with 8 differential analog inputs, 8 bidirectional digital channels and 2 counters/timers. Its analog inputs provide 14-bit resolution at up to 2.5 MS/s per channel.

ManufacturerNI (National Instruments)
ModelPCI-6133
Part Number779421-01 · 779420-01
Product Type8 AI (14-Bit, 2.5 MS/s/ch), 8 DIO, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6133

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy4660 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6133 combines simultaneous analog input acquisition with digital I/O, counters and digital triggering on a PCI DAQ device. It provides 8 differential analog input channels; single-ended analog inputs and analog outputs are not provided.

Analog acquisition supports 14-bit resolution and a maximum sampling rate of 2.5 MS/s per channel. The device draws power from the PCI bus and uses an SCSI-type front connection for signal connectivity.

  • 8 differential analog input channels with simultaneous sampling.
  • 14-bit analog input resolution and a maximum sample rate of 2.5 MS/s per channel.
  • 8 bidirectional digital I/O channels.
  • Two 24-bit counters/timers and digital triggering.
  • Bus-powered PCI interface with an SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy4660 μV
Maximum Sample Rate2.5 MS/s/ch
Simultaneous SamplingYes
EnclosedYes
Analog Input Resolution14 bits
Bus ConnectorPCI
Front Connection TypeSCSI Type
Bus ConnectionPCI
NI part numbers779421-01, 779420-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6133

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCI-6133 have?

It has 8 differential analog input channels and no single-ended analog input channels.

What are its sampling rate and resolution?

The PCI-6133 provides 14-bit analog input resolution and a maximum sampling rate of 2.5 MS/s per channel.

Does the PCI-6133 support simultaneous sampling?

Yes. The PCI-6133 supports simultaneous analog input sampling.

Does the PCI-6133 provide analog outputs?

No. It has no analog output channels. It does provide 8 bidirectional digital channels and 2 counters/timers.

Which part numbers are listed for the PCI-6133?

The listed NI part numbers are 779421-01 and 779420-01. The supplied record does not distinguish the configurations associated with these numbers.
