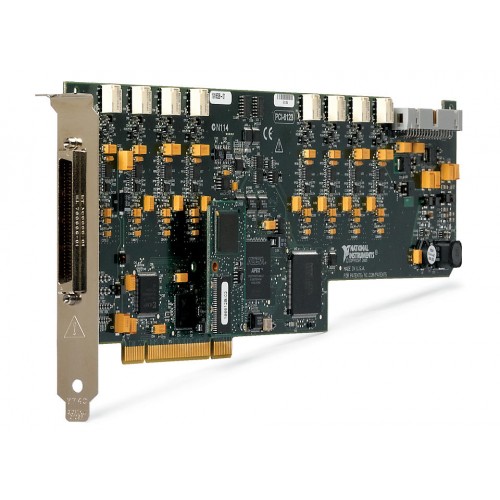

NI (National Instruments) PCI-6132 4 AI (14-Bit, 2.5 MS/s/ch), 8 DIO, PCI Multifunction I/O Device
1 image: Click to enlarge
NI (National Instruments) · PCI

PCI-6132

The NI PCI-6132 is a simultaneous-sampling PCI data acquisition device with 4 differential analog inputs, 14-bit resolution and a maximum sample rate of 2.5 MS/s per channel. It also provides 8 bidirectional digital channels and 2 counters/timers.

ManufacturerNI (National Instruments)
ModelPCI-6132
Part Number779422-01
Product Type4 AI (14-Bit, 2.5 MS/s/ch), 8 DIO, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6132

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Max Differential Analog Input Channels4
Analog Input Absolute Accuracy4660 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6132 combines four differential analog input channels with simultaneous sampling, 14-bit resolution and acquisition rates up to 2.5 MS/s per channel. Its listed analog input FIFO buffer size is 16 MS.

Alongside analog acquisition, the device provides 8 bidirectional digital channels and 2 counters/timers. It operates from PCI bus power and has no analog output channels.

  • Four differential analog input channels with simultaneous sampling.
  • 14-bit analog input resolution at up to 2.5 MS/s per channel.
  • 16 MS analog input FIFO buffer.
  • Eight bidirectional digital channels and two counters/timers.
  • Bus-powered PCI interface with a SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels4
Analog Input Absolute Accuracy4660 μV
Analog Input FIFO Buffer Size16 MS
Maximum Sample Rate2.5 MS/s/ch
Simultaneous SamplingYes
EnclosedYes
Analog Input Resolution14 bits
Bus ConnectorPCI
Front Connection TypeSCSI Type
Bus ConnectionPCI
NI part numbers779422-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6132

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog inputs does the PCI-6132 provide?

It provides 4 differential analog input channels with 14-bit resolution. It does not provide single-ended analog input channels.

Does the PCI-6132 sample its analog inputs simultaneously?

Yes. The PCI-6132 supports simultaneous sampling at a maximum rate of 2.5 MS/s per channel.

Does the PCI-6132 have analog outputs?

No. The listed analog output channel count is zero. It does include 8 bidirectional digital channels and 2 counters/timers.

What interface and power source does the PCI-6132 use?

The device uses a PCI bus connection and is bus powered.

What NI part number is listed for this model?

The supplied verified catalog data lists NI part number 779422-01 for the PCI-6132.
