NI (National Instruments) · PCI

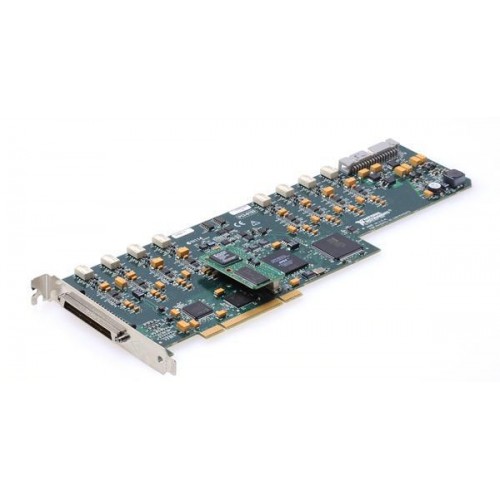

PCI-6123

The NI PCI-6123 is a simultaneous-sampling PCI multifunction DAQ device with eight differential analog inputs, 16-bit resolution and a maximum sample rate of 500 kS/s per channel. It also provides eight bidirectional digital channels, two 24-bit counters and digital triggering.

ManufacturerNI (National Instruments)

ModelPCI-6123

Part Number779408-01 · 779409-01

Product Type8 AI (16-Bit, 500 kS/s/ch), 8 DIO, PCI Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6123

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels8

Supported Power InputBus Powered

Number of Counters/Timers2

Max Differential Analog Input Channels8

Analog Input Absolute Accuracy4960 μV

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6123 provides eight differential analog input channels with simultaneous sampling at up to 500 kS/s per channel and 16-bit resolution. Its selectable input ranges are ±10 V, ±5 V, ±2.5 V and ±1.25 V.

Alongside analog acquisition, the device provides eight bidirectional digital channels, two 24-bit counters and digital triggering. It connects through the PCI bus and uses bus power. This catalog record is for the PCI-6123, not the PXI-6123 mentioned in the legacy description.

Eight differential analog inputs with 16-bit resolution.
Simultaneous sampling at a maximum of 500 kS/s per channel.
Four bipolar analog input ranges: ±10 V, ±5 V, ±2.5 V and ±1.25 V.
Eight bidirectional digital channels and two 24-bit counters.
Digital triggering support.
Bus-powered PCI interface with a SCSI-type front connection.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	8
Supported Power Input	Bus Powered
Number of Counters/Timers	2
Maximum Number of Differential Analog Input Channels	8
Analog Input Absolute Accuracy	4960 μV
Maximum Sample Rate	500 kS/s/ch
Simultaneous Sampling	Yes
Enclosed	Yes
Analog Input Resolution	16 bits
Bus Connector	PCI
Front Connection Type	SCSI Type
Bus Connection	PCI
Analog Input Voltage Range	-10 V to 10 V -5 V to 5 V -2.5 V to 2.5 V -1.25 V to 1.25 V
NI part numbers	779408-01, 779409-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6123

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog inputs does the PCI-6123 provide?

It provides eight differential analog input channels with 16-bit resolution. It has no single-ended analog input channels.

Is 500 kS/s the per-channel sample rate?

Yes. The maximum sample rate is 500 kS/s per channel, with simultaneous sampling.

Which analog input voltage ranges are supported?

The listed ranges are ±10 V, ±5 V, ±2.5 V and ±1.25 V.

Does the PCI-6123 provide analog outputs?

No. It has zero analog output channels. Its other I/O resources include eight bidirectional digital channels and two counters/timers.

What NI part numbers are associated with this model?

The existing verified catalog data lists 779408-01 and 779409-01. The configuration distinction between these numbers is not documented in the supplied record; confirm the required variant before selection.
