PCI-6122
1 image: Click to enlarge
NI (National Instruments) · PCI

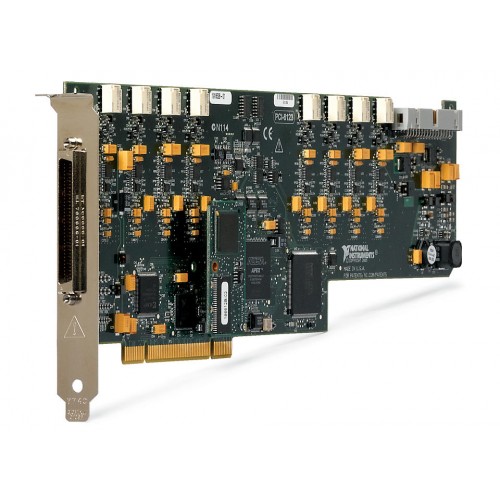

PCI-6122

The NI PCI-6122 is a PCI multifunction DAQ device with four simultaneous-sampling, 16-bit differential analog inputs rated up to 500 kS/s per channel. It also provides eight bidirectional digital channels, two counters/timers and digital triggering.

ManufacturerNI (National Instruments)
ModelPCI-6122
Part Number779407-01
Product Type4 AI (16-Bit, 500 kS/s/ch), 8 DIO, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6122

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Max Differential Analog Input Channels4
Analog Input Absolute Accuracy4960 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6122 combines four differential voltage-input channels with simultaneous sampling and 16-bit resolution. Its maximum sampling rate is 500 kS/s per channel, with selectable bipolar input ranges of ±10 V, ±5 V, ±2.5 V and ±1.25 V.

Alongside analog acquisition, the device includes eight bidirectional digital channels, two counters/timers and digital triggering. It connects through PCI and draws power from the bus. The PCI-6122 has no analog output channels.

  • Four differential analog input channels with 16-bit resolution.
  • Simultaneous sampling at up to 500 kS/s per channel.
  • Four selectable bipolar analog input ranges: ±10 V, ±5 V, ±2.5 V and ±1.25 V.
  • Eight bidirectional digital channels and two counters/timers.
  • Digital triggering for acquisition control.
  • Bus-powered PCI interface with a SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels4
Analog Input Absolute Accuracy4960 μV
Analog Input FIFO Buffer Size2046 samples
Maximum Sample Rate500 kS/s/ch
Simultaneous SamplingYes
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorPCI
Front Connection TypeSCSI Type
Bus ConnectionPCI
Analog Input Voltage Range-10 V to 10 V -5 V to 5 V -2.5 V to 2.5 V -1.25 V to 1.25 V
NI part numbers779407-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6122

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCI-6122 provide?

It provides four differential analog input channels with 16-bit resolution. It does not provide single-ended analog input channels.

Does the PCI-6122 sample its inputs simultaneously?

Yes. The four analog input channels support simultaneous sampling at a maximum rate of 500 kS/s per channel.

Does the PCI-6122 include analog outputs?

No. It has no analog output channels. Its other I/O resources include eight bidirectional digital channels and two counters/timers.

What host interface does the PCI-6122 use?

The PCI-6122 uses a PCI bus connection and is bus powered. Check the host slot and software requirements before integration.
