NI (National Instruments) · PCI

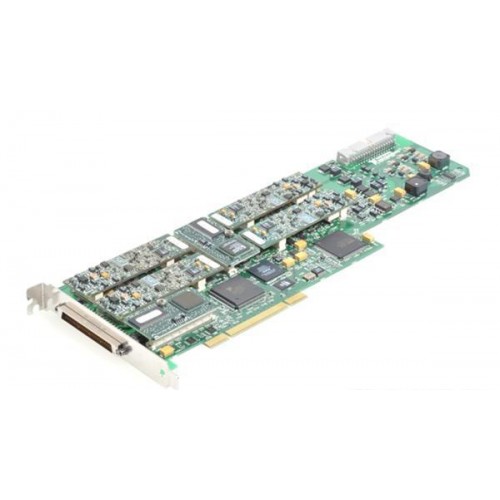

PCI-6120

The NI PCI-6120, part number 778397-01, is a bus-powered PCI multifunction I/O device with four simultaneous-sampling, 16-bit differential analog inputs. It also provides two analog outputs, eight bidirectional digital channels and two counters/timers.

ManufacturerNI (National Instruments)

ModelPCI-6120

Part Number778397-01

Product Type4 AI (16-Bit, 800 kS/s/ch), 8 DIO, PCI Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6120

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels8

Supported Power InputBus Powered

Number of Counters/Timers2

Max Differential Analog Input Channels4

Analog Input Absolute Accuracy76 mV

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6120 combines simultaneous analog input acquisition with analog output, digital I/O and counter/timer functions on a PCI device. Its four differential inputs provide 16-bit resolution at a specified maximum sample rate of 800 kS/s per channel.

The device uses a PCI host connection and a SCSI-type front connection. The NI specifications, PCI getting-started guide and model-specific dimensional drawings provide resources for planning installation and signal connections.

Four differential analog inputs with 16-bit resolution and simultaneous sampling.
Maximum analog input sample rate of 800 kS/s per channel.
32 MS analog input FIFO buffer.
Two analog output channels with a specified maximum analog update rate of 4 MS/s.
Eight bidirectional digital channels and two counters/timers.
Bus-powered PCI interface with a SCSI-type front connection.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	8
Supported Power Input	Bus Powered
Number of Counters/Timers	2
Maximum Number of Differential Analog Input Channels	4
Analog Input Absolute Accuracy	76 mV
Analog Input FIFO Buffer Size	32 MS
Maximum Sample Rate	800 kS/s/ch
Simultaneous Sampling	Yes
Enclosed	Yes
Analog Input Resolution	16 bits
Bus Connector	PCI
Front Connection Type	SCSI Type
Number of Analog Output Channels	2
Maximum Analog Update Rate	4 MS/s
Bus Connection	PCI
Analog Input Voltage Range	-42 V to 42 V, -20 V to 20 V, -10 V to 10 V, -5 V to 5 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)	-1 V to 1 V, -0.5 V to 0.5 V, -0.2 V to 0.2 V
NI part numbers	778397-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6120

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCI-6120 have?

It has four differential analog input channels with 16-bit resolution and simultaneous sampling. The existing verified specifications list no single-ended analog input channels.

What is the specified maximum analog input sample rate?

The retained verified specification is 800 kS/s per channel. Consult the NI 6115/6120 specifications for operating-mode details and limits.

What other I/O functions are provided?

The PCI-6120 provides two analog output channels, eight bidirectional digital channels and two counters/timers.

What connections does the PCI-6120 use?

It uses a PCI host bus connection and a SCSI-type front connection. Confirm the exact cable and terminal accessory requirements in NI documentation before selecting accessories.
