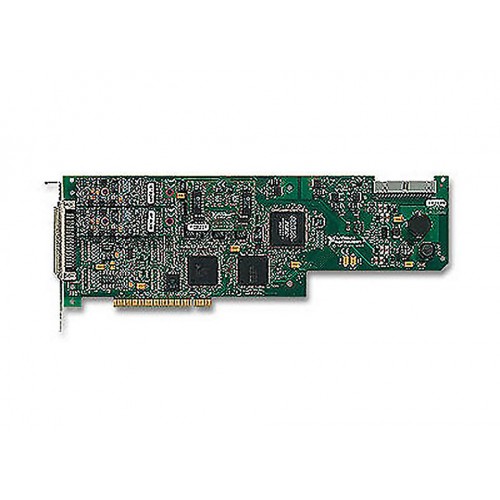

NI (National Instruments) PCI-6111 2 AI (12-Bit, 5 MS/s/ch), 2 AO, 8 DIO, PCI Multifunction I/O Device
1 image: Click to enlarge
NI (National Instruments) · PCI

PCI-6111

The NI PCI-6111 is a simultaneous-sampling multifunction PCI DAQ device with two differential, 12-bit analog inputs at up to 5 MS/s per channel. It also provides two analog outputs, eight bidirectional digital channels and two counters/timers.

ManufacturerNI (National Instruments)
ModelPCI-6111
Part Number777530-01
Product Type2 AI (12-Bit, 5 MS/s/ch), 2 AO, 8 DIO, PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6111

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Max Differential Analog Input Channels2
Analog Input Absolute Accuracy252 mV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6111 combines simultaneous analog input acquisition with analog output, digital I/O and counter/timer resources on a PCI device. Its two differential inputs provide 12-bit resolution and a maximum sample rate of 5 MS/s per channel, with an 8192-sample analog input FIFO.

Selectable analog input ranges extend from ±0.2 V to ±42 V. Two analog output channels, eight bidirectional digital channels and two counters/timers provide additional I/O resources. The device draws power from the PCI bus and uses a SCSI-type front connection.

  • Two differential analog input channels with 12-bit resolution.
  • Simultaneous sampling at up to 5 MS/s per input channel.
  • 8192-sample analog input FIFO buffer.
  • Two analog output channels with a maximum update rate of 4 MS/s.
  • Eight bidirectional digital channels and two counters/timers.
  • Bus-powered PCI connection with a SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels8
Supported Power InputBus Powered
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels2
Analog Input Absolute Accuracy252 mV
Analog Input FIFO Buffer Size8192 samples
Maximum Sample Rate5 MS/s/ch
Simultaneous SamplingYes
EnclosedYes
Analog Input Resolution12 bits
Bus ConnectorPCI
Front Connection TypeSCSI Type
Number of Analog Output Channels2
Maximum Analog Update Rate4 MS/s
Bus ConnectionPCI
Analog Input Voltage Range-42 V to 42 V, -20 V to 20 V, -10 V to 10 V, -5 V to 5 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)-1 V to 1 V, -0.5 V to 0.5 V, -0.2 V to 0.2 V
NI part numbers777530-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6111

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCI-6111 have?

It has two differential analog input channels with 12-bit resolution. It does not provide single-ended analog input channels.

Does the PCI-6111 support simultaneous sampling?

Yes. The analog inputs support simultaneous sampling at a maximum rate of 5 MS/s per channel.

What analog output capability does it provide?

The PCI-6111 provides two analog output channels with a maximum analog update rate of 4 MS/s.

What digital and timing resources are included?

The device includes eight bidirectional digital channels and two counters/timers.
