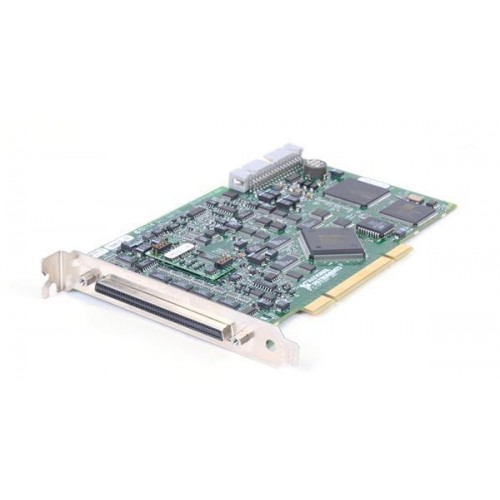

National Instruments PCI-6071E Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · PCI

PCI-6071E

The National Instruments PCI-6071E is a PCI multifunction DAQ card with 64 analog inputs, 12-bit resolution, and a maximum sampling rate of 1.25 MS/s. It also provides two analog outputs, eight digital I/O lines, and two counter/timers.

ManufacturerNational Instruments
ModelPCI-6071E
Part Number777515-01 · 184411-01
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6071E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI
Analog inputs64 single-ended or 32 differential
Acquisition12-bit; 1.25 MS/s maximum
Additional I/O2 analog outputs; 8 digital I/O lines
TimingTwo 24-bit counter/timers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6071E combines analog acquisition, analog output, digital I/O, and counter/timer functions in a PCI device. NI identifies laboratory automation, research, design verification, and manufacturing test as applications for this model.

This catalog record is for the PCI-6071E, not the PXI-6071E. NI lists the two as separate devices within the 6070E/6071E family.

  • Software-selectable single-ended or differential analog input configuration.
  • Analog input, analog output, digital I/O, and counter/timer functions on one card.
  • Two 24-bit counter/timers for timing and counting tasks.
Verified specifications

Technical data

Verified product specifications.

Bus interfacePCI
Analog input channels64 single-ended or 32 differential
Analog input resolution12 bit
Maximum sampling rate1.25 MS/s
Analog output channels2 channels
Digital I/O lines8 lines
Counter/timers2
Counter/timer resolution24 bit
Analog input FIFO512 samples
I/O connector100-pin female 0.050 D-type
Dimensions excluding connectors17.5 × 10.7 cm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host bus

PCI-6071E

E Series multifunction DAQ card

Historical driver support

NI-DAQmx 8.1 lists the PCI-6071E as supported hardware.

Check the exact driver release and operating system before integration; historical support does not establish compatibility with current software.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6070E/6071E Family SpecificationsSpecifications · download.ni.com
Open →
NI PCI-6071 Product PageManufacturer Product Page · ni.com
Open →
NI-DAQmx 8.1 ReadmeHistorical Driver Documentation · download.ni.com
Open →
6070E/6071E I/O Terminal Summary and SpecificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this the PCI or PXI version?

This record is for the PCI-6071E PCI card. The PXI-6071E is a separate device in the same NI family.

Does it provide outputs and counters as well as analog inputs?

Yes. It provides two analog outputs, eight digital I/O lines, and two 24-bit counter/timers.
