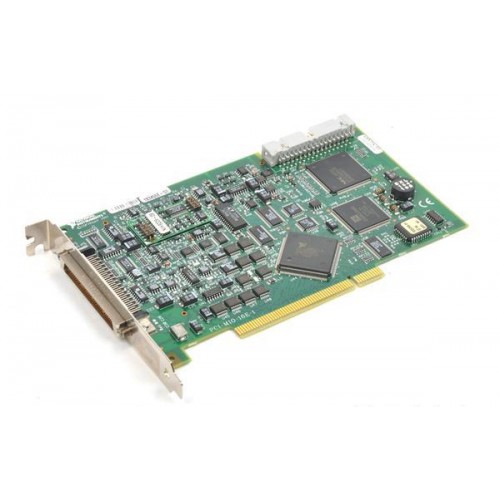

National Instruments PCI-6070E / PCI-MIO-16E-1 Multifunction DAQ board
1 image: Click to enlarge
National Instruments · PCI

PCI-6070E / PCI-MIO-16E-1

The National Instruments PCI-6070E, also known as PCI-MIO-16E-1, is an E Series multifunction PCI data acquisition board combining analog, digital, and counter I/O.

ManufacturerNational Instruments
ModelPCI-6070E / PCI-MIO-16E-1
Product TypeMultifunction DAQ board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6070E / PCI-MIO-16E-1

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
ADC resolution12-bit
Maximum sampling rate1.25 MS/s
Analog outputs2
Digital I/O8 lines
Counter/timers2
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This PCI board belongs to NI's legacy E Series multifunction I/O range. NI explicitly identifies PCI-6070E and PCI-MIO-16E-1 as alternate names for the same device.

Its 68-pin SCSI 0.050 D-type connection is covered by NI's archived cable and accessory guide. Select accessories using the exact model and the guide's limitations, rather than connector appearance alone.

  • Software-selectable single-ended or differential analog inputs.
  • Two analog output channels complement the analog acquisition channels.
  • Eight digital I/O lines and two counter/timers on one PCI board.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential channels
Analog input resolution12 bit
Maximum analog input sampling rate1.25 MS/s
Analog outputs2 channels
Analog output resolution12 bit
Digital I/O8 lines
Counter/timers2
I/O connector68-pin male 0.050 D-type
Analog input FIFO512 samples
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI E Series

Host interface and DAQ family

PCI-6070E / PCI-MIO-16E-1

Multifunction DAQ board

Compatibility

NI groups PCI-6070E / PCI-MIO-16E-1 with its 68-pin SCSI 0.050 D-type multifunction I/O devices for cable and accessory selection. Consult the group-specific table and limitations.

This record is for the PCI board, not the separately listed PXI-6070E. Verify host, driver, and accessory requirements before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6070E/6071E Family SpecificationsSpecifications And Pinout · download.ni.com
Open →
Archived 60xx/60xxE Cable and Accessory Compatibility GuideCompatibility Guide · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are PCI-6070E and PCI-MIO-16E-1 the same model?

Yes. NI's archived accessory guide explicitly lists PCI-MIO-16E-1 as another name for PCI-6070E.

Where is the connector pinout documented?

Figure 1 of the NI 6070E/6071E Family Specifications shows the PCI-MIO-16E-1 pinout.
