NI (National Instruments) PCI-5922 24-Bit, Flexible Resolution PCI Oscilloscope Device

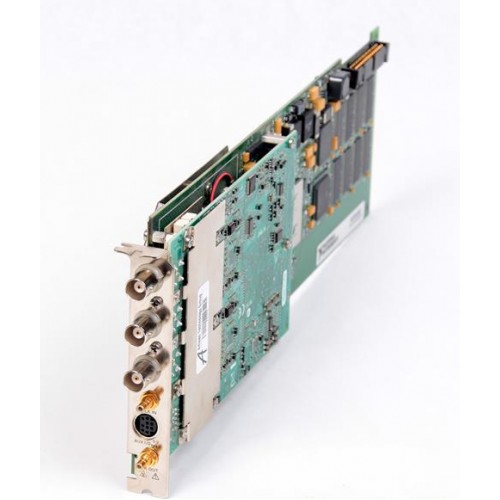

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

PCI-5922

The NI PCI-5922 is a two-channel, flexible-resolution PCI oscilloscope and digitizer with resolution up to 24 bits. Its maximum bandwidth is 6 MHz and its maximum sample rate is 15 MS/s; achievable resolution depends on the acquisition settings.

ManufacturerNI (National Instruments)

ModelPCI-5922

Part Number779659-02 · 779659-01

Product Type24-Bit, Flexible Resolution PCI Oscilloscope Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5922

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPCI

Oscilloscope Maximum Bandwidth6 MHz

Maximum Sample Rate15 MS/s

Analog Input Voltage Range-5 V to 5 V

Analog Input Resolution24 bits

Voltage Input Channels2
