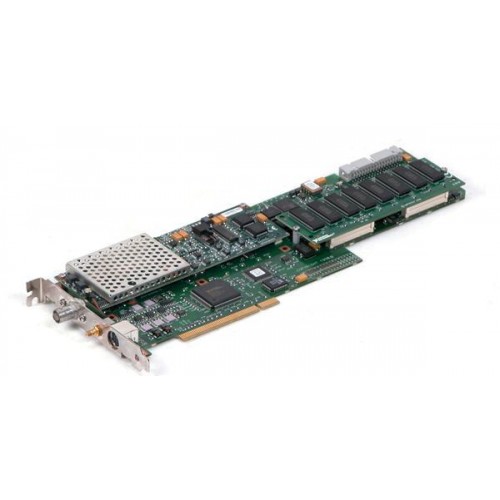

The National Instruments PCI-5911 is a single-channel PCI digitizer offering conventional high-speed acquisition and flexible-resolution sampling.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Conventional mode provides 8-bit acquisition. Flexible-resolution mode trades sampling rate and bandwidth for higher effective resolution, with anti-alias filtering.
Random-interleaved sampling reaches an effective 1 GS/s for repetitive signals; it is not a 1 GS/s real-time acquisition mode.
Verified product specifications.
| Analog input channels | 1 channel |
|---|---|
| Maximum real-time sample rate | 100 MS/s |
| Maximum bandwidth | 100; conventional mode MHz |
| Conventional-mode resolution | 8 bits |
| Maximum effective resolution | 21 at 10 kS/s; flexible-resolution mode bits |
| Input impedance | 1 ±2% MΩ |
| Maximum measurable input voltage | ±10; DC plus peak AC V |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Flexible-resolution digitizer
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Conventional acquisition is 8-bit. The 21-bit effective-resolution setting operates at 10 kS/s with 4 kHz bandwidth.
It is an effective random-interleaved sampling rate for repetitive signals. Maximum real-time sampling is 100 MS/s.
The catalog record does not identify it. NI documents 4 MB and 16 MB options; confirm the installed option separately.
