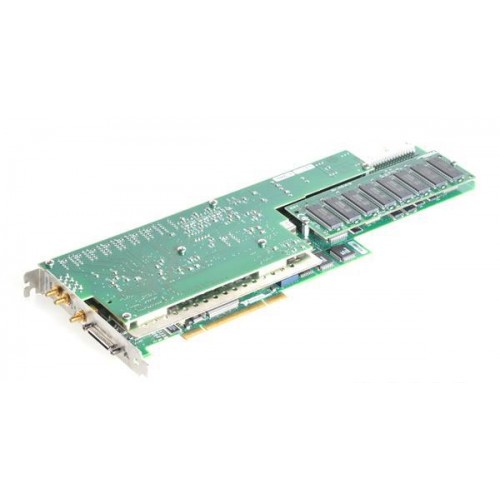

The National Instruments PCI-5431 is a single-channel, 12-bit PCI video waveform generator with arbitrary waveform memory and video-format-specific timing.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-5431 belongs to NI's video waveform generator family. Its waveform memory and sequencing support stored signal generation.
NI's archived instrument-driver reference describes calculating composite video data, downloading it to the board and configuring waveform sequences. It also documents image mapping and video-format selection functions.
Verified product specifications.
| Analog output channels | 1 channel |
|---|---|
| Analog output resolution | 12 bit |
| Arbitrary waveform sample rate | 40 MS/s |
| NTSC/PAL-M sample rate | 40.02797 MS/s |
| Arbitrary waveform memory | 8,000,000 16-bit samples |
| DDS accumulator | 32 bit |
| Output impedance | 50 or 75, software selectable Ω |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host platform
Video waveform generator
NI 5431 high-level functions use NI-FGEN instrument sessions.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies the PCI-5431 as a video waveform generator and the PCI-5411 as a high-speed arbitrary waveform generator.
Yes. The archived NI 5431 driver reference documents functions to calculate and save composite video data, calculate and download video data, and configure the generation sequence.
No. The NI-FGEN 17.1 hardware table marks the PXI/PCI-5431 unsupported under both 32-bit and 64-bit Windows 10, Windows 8.1 and Windows 7. Driver installation alone does not establish device support.
