NI (National Instruments) PCI-5421 100 MS/s, 16-Bit Waveform Generator Device

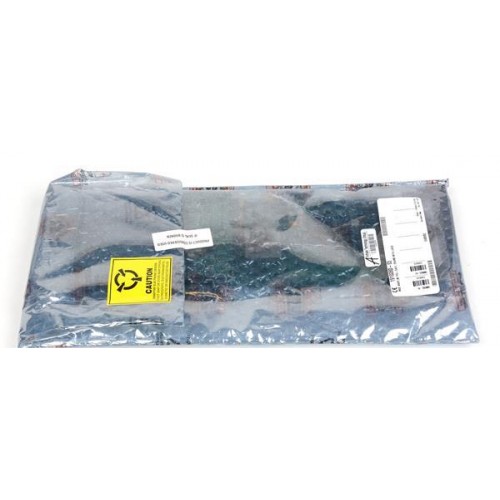

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

PCI-5421

The NI PCI-5421 is a 100 MS/s, 16-bit waveform generator with one analog output channel, arbitrary waveform support and a PCI bus connection.

ManufacturerNI (National Instruments)

ModelPCI-5421

Part Number778692-01 · 778692-03

Product Type100 MS/s, 16-Bit Waveform Generator Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5421

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Bandwidth43 MHz

Analog Output Resolution16 bits

Supports Arbitrary WaveformsYes

Supported Hardware PlatformComputer-Based Device

Bus ConnectionPCI

Analog Output Voltage Range-12 V to 12 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-5421 is a computer-based PCI waveform generator for producing user-defined arbitrary waveforms and standard functions, including sine, square, triangle and ramp. It uses direct digital synthesis to generate waveforms.

Its single analog output combines 16-bit resolution with a maximum analog update rate of 100 MS/s and a maximum bandwidth of 43 MHz. Scripting, synchronization and data streaming support provide additional waveform-generation capabilities.

100 MS/s maximum analog update rate.
16-bit analog output resolution.
43 MHz maximum bandwidth.
One analog output channel.
Generates user-defined arbitrary waveforms and standard waveform functions.
Supports scripting, synchronization and data streaming.

Verified specifications

Technical data

Verified product specifications.

Maximum Bandwidth	43 MHz
Analog Output Resolution	16 bits
Supports Arbitrary Waveforms	Yes
Supported Hardware Platform	Computer-Based Device
Bus Connection	PCI
Analog Output Voltage Range	-12 V to 12 V
Maximum Analog Update Rate	100 MS/s
Number of Output Channels	1
Supports Scripting	Yes
NI part numbers	778692-01, 778692-03, 778692-02

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-5421

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of device is the PCI-5421?

The PCI-5421 is a single-channel, 100 MS/s, 16-bit waveform generator for a computer-based system with a PCI bus connection.

What waveforms can the PCI-5421 generate?

It can generate user-defined arbitrary waveforms and standard functions, including sine, square, triangle and ramp.

What are its maximum update rate and bandwidth?

The maximum analog update rate is 100 MS/s, and the maximum bandwidth is 43 MHz.

Does the PCI-5421 support scripting?

Yes. The PCI-5421 supports scripting.

What is the listed analog output voltage range?

The listed analog output voltage range is -12 V to 12 V. Consult the NI specifications for the output limits applicable to your load and configuration.
