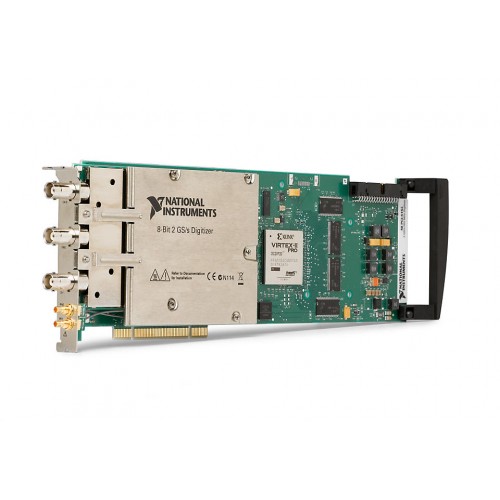

NI (National Instruments) PCI-5154 1 GHz Bandwidth, 2 GS/s, 8-Bit PCI Oscilloscope Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-5154

The NI PCI-5154 is a two-channel PCI oscilloscope with 1 GHz bandwidth, a maximum sample rate of 2 GS/s and 8-bit analog input resolution.

ManufacturerNI (National Instruments)
ModelPCI-5154
Part Number780320-01 · 780320-03
Product Type1 GHz Bandwidth, 2 GS/s, 8-Bit PCI Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5154

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPCI
Oscilloscope Maximum Bandwidth1 GHz
Maximum Sample Rate2 GS/s
Analog Input Voltage Range-2.5 V to 2.5 V
Analog Input Resolution8 bits
Voltage Input Channels2
