NI (National Instruments) PCI-5152 300 MHz Bandwidth, 2 GS/s, 8-Bit PCI Oscilloscope Device

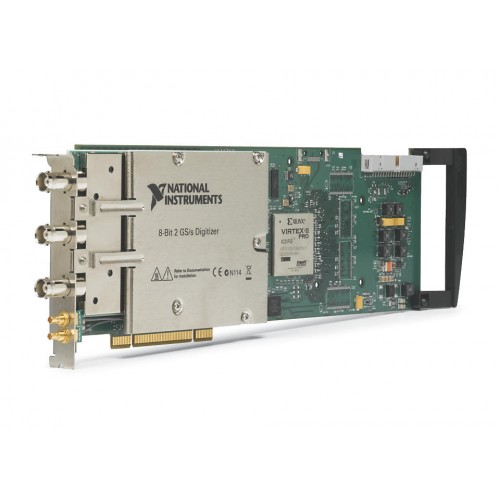

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-5152

The NI PCI-5152 is a two-channel PCI oscilloscope with 300 MHz bandwidth, a maximum sample rate of 2 GS/s and 8-bit resolution.

ManufacturerNI (National Instruments)
ModelPCI-5152
Part Number779945-01 · 779945-02
Product Type300 MHz Bandwidth, 2 GS/s, 8-Bit PCI Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5152

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPCI
Oscilloscope Maximum Bandwidth300 MHz
Maximum Sample Rate2 GS/s
Analog Input Voltage Range-5 V to 5 V
Analog Input Resolution8 bits
Voltage Input Channels2
