NI (National Instruments) PCI-5122 100 MHz Bandwidth, 100 MS/s, 14-Bit PCI Oscilloscope Device

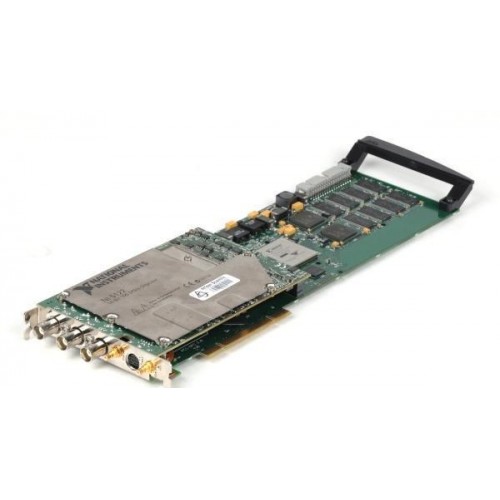

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-5122

The NI PCI-5122 is a two-channel PCI oscilloscope device with 100 MHz bandwidth, a maximum sample rate of 100 MS/s, and 14-bit analog input resolution.

ManufacturerNI (National Instruments)
ModelPCI-5122
Part Number778758-02 · 778758-03
Product Type100 MHz Bandwidth, 100 MS/s, 14-Bit PCI Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5122

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPCI
Oscilloscope Maximum Bandwidth100 MHz
Maximum Sample Rate100 MS/s
Analog Input Voltage Range-10 V to 10 V
Analog Input Resolution14 bits
Voltage Input Channels2
