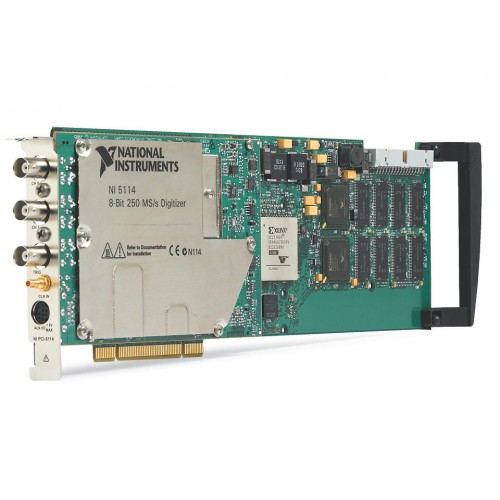

NI (National Instruments) PCI-5114 125 MHz Bandwidth, 2-Channel, 8-Bit PCI Oscilloscope Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-5114

The NI PCI-5114 is a 2-channel PCI oscilloscope device with 125 MHz bandwidth, a 250 MS/s maximum sample rate and 8-bit analog input resolution.

ManufacturerNI (National Instruments)
ModelPCI-5114
Part Number779745-03 · 779745-01
Product Type125 MHz Bandwidth, 2-Channel, 8-Bit PCI Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5114

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPCI
Oscilloscope Maximum Bandwidth125 MHz
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-20 V to 20 V
Analog Input Resolution8 bits
Voltage Input Channels2
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-5114 is a computer-based oscilloscope that connects through the PCI bus. Its two voltage input channels provide 125 MHz bandwidth and a maximum sample rate of 250 MS/s with 8-bit resolution.

The analog inputs support AC/DC coupling and 1 MΩ or 50 Ω input impedance. The preserved catalog specifications list an analog input voltage range of -20 V to 20 V; consult the NI specifications for range-dependent operating limits before connecting a signal.

  • 125 MHz oscilloscope bandwidth.
  • Maximum sample rate of 250 MS/s.
  • Two voltage input channels with 8-bit resolution.
  • AC/DC input coupling.
  • 1 MΩ and 50 Ω analog input impedance options.
  • PCI interface for computer-based instrumentation.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPCI
Oscilloscope Maximum Bandwidth125 MHz
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-20 V to 20 V
Analog Input Resolution8 bits
EnclosedYes
Number of Voltage Input Channels2
Supported Hardware PlatformComputer-Based Device
Analog Input CouplingAC/DC
Analog Input Impedance1 MOhm, 50 Ohm
Onboard Digital DownconverterNo
NI part numbers779745-03, 779745-01, 779745-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCI-5114

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of instrument is the NI PCI-5114?

It is a computer-based PCI oscilloscope with two voltage input channels, 125 MHz bandwidth and 8-bit resolution.

What is the maximum sample rate?

The PCI-5114 has a maximum sample rate of 250 MS/s.

What input coupling and impedance options are listed?

The preserved specifications list AC/DC coupling and analog input impedances of 1 MΩ and 50 Ω.

Does the PCI-5114 include an onboard digital downconverter?

No. The preserved verified specifications identify the PCI-5114 as having no onboard digital downconverter.
