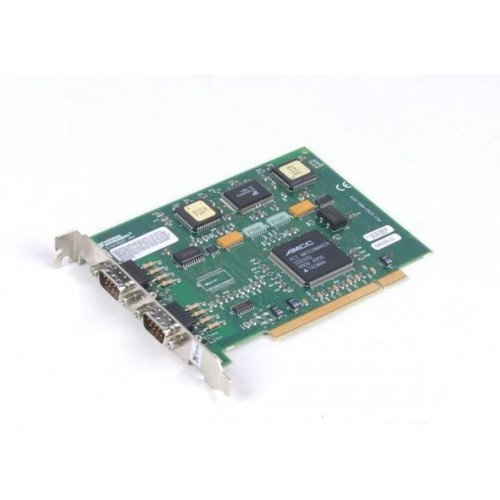

The National Instruments PCI-485/2 is a legacy PCI serial interface with two non-isolated RS-485/RS-422 ports and DB-9 male connections.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-485/2 belongs to NI's legacy PCI serial hardware family. It provides two RS-485/RS-422 ports and is distinct from the isolated PCI-485I/2 variant.
Driver selection is important for this legacy interface: NI explicitly removed PCI-485 family support in NI-Serial 17.0. Check the intended operating system and an appropriate earlier driver release before integration.
Verified product specifications.
| Host bus | PCI |
|---|---|
| Number of serial ports | 2 ports |
| Supported serial standards | RS-485/RS-422 |
| Isolation | None |
| Serial connector type | DB-9 male |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host platform
Two-port non-isolated RS-485/RS-422 interface
NI specifies that the legacy PCI interfaces in its Table 1 accept 5 V only; confirm the host PCI slot requirements before installation.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI's release notes state that NI-Serial 17.0 removed support for the PCI-485 family. Verify an earlier driver release against the intended operating system.
No. NI lists the PCI-485/2 as non-isolated; the PCI-485I/2 is the separate isolated variant.
