National Instruments · PCI

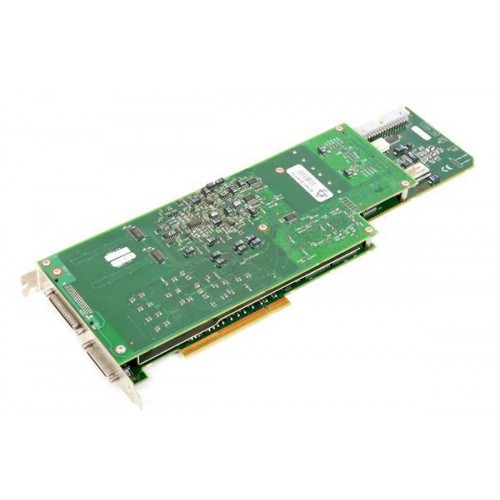

PCI-4551

The PCI-4551 is a PCI dynamic signal analyzer with two analog inputs and two analog outputs.

ManufacturerNational Instruments

ModelPCI-4551

Product TypeDynamic signal analyzer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-4551

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Resolution16-bit input and output

Input samplingSimultaneous

Output updatesSimultaneous

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Oversampling delta-sigma converters provide integrated antialiasing and anti-imaging filtering.

Differential analog inputs.
Software-selectable AC/DC input coupling.
Per-channel programmable input ranges.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	2 channels
Maximum input sample rate	204.8 kS/s per channel
Analog output channels	2 channels
Maximum output update rate	51.2 kS/s per channel
Input/output resolution	16 bits

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI-DSA

Instrument family

PCI-4551

Acquisition and generation

Compatibility

Requires a 5 V PCI expansion slot.

Confirm host slot and legacy software requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 4551/4552 User ManualUser Manual · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does it differ from PCI-4552?

PCI-4552 has four analog inputs and no analog outputs.

Which analog connection accessory is documented?

BNC-2140 with the SHC68-C68-A1 cable.
