NI (National Instruments) · PCI

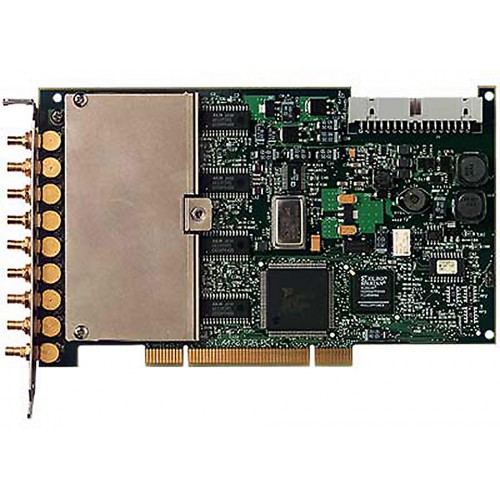

PCI-4472

The NI PCI-4472, part number 778348-01, is an eight-input PCI sound and vibration device with 24-bit analog-to-digital conversion, a maximum sample rate of 102.4 kS/s and 110 dB dynamic range.

ManufacturerNI (National Instruments)

ModelPCI-4472

Part Number778348-01

Product Type102.4 kS/s, 110 dB, 3.4 Hz AC/DC-Coupled, 8-Input Sound and Vibration Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-4472

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Differential Analog Input Channels8

Bus ConnectionPCI

Analog Input CouplingAC/DC

Maximum Sample Rate102.4 kS/s

Highpass Filter Cut-Off Frequency3.4 Hz

Front Connection TypeSMB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-4472 is designed for sound and vibration measurements in a PCI-based acquisition system. Its eight input channels simultaneously digitize signals, providing multichannel acquisition for acoustic and vibration measurements.

The inputs provide AC/DC coupling and integrated IEPE signal conditioning for accelerometers and microphones. Built-in antialiasing filters automatically adjust to the sampling rate.

Eight simultaneously sampled analog input channels.
24-bit analog-to-digital conversion with 110 dB dynamic range.
Maximum sample rate of 102.4 kS/s.
AC/DC input coupling with a 3.4 Hz highpass filter cutoff.
Integrated IEPE signal conditioning for accelerometers and microphones, with sampling-rate-dependent antialiasing filters.
SMB front connections and an analog input voltage range of -10 V to 10 V.
RTSI bus synchronization with other modules or devices.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels	8
Bus Connection	PCI
Analog Input Coupling	AC/DC
Maximum Sample Rate	102.4 kS/s
Highpass Filter Cut-Off Frequency	3.4 Hz
Front Connection Type	SMB
Analog Input Voltage Range	-10 V to 10 V
Electrical Signal Measured	Voltage
NI part numbers	778348-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connection

PCI-4472

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PCI-4472?

The listed NI part number is 778348-01.

How many inputs does the PCI-4472 have?

It has eight analog input channels that simultaneously digitize input signals, at a maximum sample rate of 102.4 kS/s.

What signal conditioning does the PCI-4472 provide?

The inputs provide AC/DC coupling, IEPE signal conditioning for accelerometers and microphones, and built-in antialiasing filters that automatically adjust to the sampling rate.

Which host interface and signal connectors does it use?

The PCI-4472 uses a PCI host bus interface and SMB front connections.
