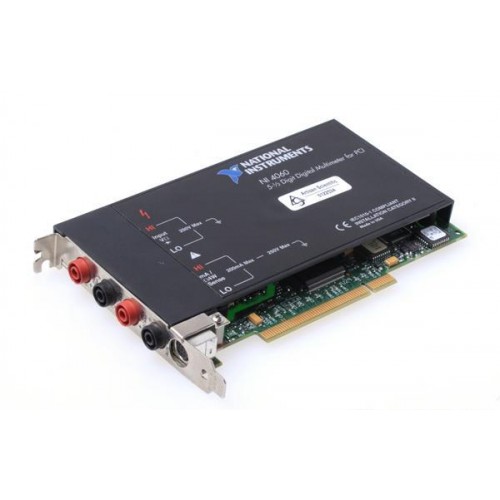

The National Instruments PCI-4060 is a 5.5-digit PCI digital multimeter for AC/DC voltage, AC/DC current, resistance, and diode measurements.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-4060 provides multimeter functions in a PCI computer card. NI documents its software support in version-specific NI-DMM readmes; host operating-system compatibility must be checked against the selected driver release.
Verified product specifications.
| Resolution | 5.5 digits |
|---|---|
| DC voltage ranges | 20 mV, 200 mV, 2 V, 25 V, 250 V |
| AC voltage bandwidth | 20 Hz to 25 kHz |
| Direct current-input maximum | 200 mA |
| Resistance ranges | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ; extended resistance above 2 MΩ |
| Warm-up time | 30 minutes |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Digital multimeter card
NI-DMM; support depends on release and operating system.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Its direct current input is limited to 200 mA; 10 A measurements require the CSM-10A shunt.
No. The NI-DMM 15.0 readme lists PCI-4060 support only under Windows XP (32-bit), not the listed 64-bit Windows systems. This is a release-specific compatibility statement.
NI identifies the 4060 Cable, part number 184931-0R5, for PCI-4060 PFI signals. It is a 0.5 m trigger cable with a 9-pin DIN connection and two BNC connections.
