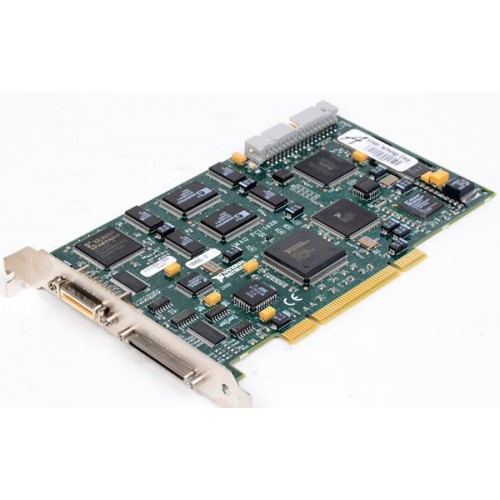

The National Instruments PCI-1428 is a PCI image acquisition board for Camera Link cameras. It supports Base configuration and the four-tap, 8-bit mode of Medium configuration.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Designed for industrial and scientific imaging, the PCI-1428 transfers acquired images to onboard or system memory.
Camera selection must account for pixel clock, data width, tap configuration, and timing requirements—not just the Camera Link interface.
Verified product specifications.
| Camera interface | Camera Link |
|---|---|
| Maximum camera data width | 32 bits |
| Pixel clock frequency | 20–50 MHz |
| Onboard SDRAM | 16 MB |
| External trigger I/O lines | 4 |
| Trigger voltage range | 0–5 (TTL) V |
| Theoretical maximum PCI bandwidth | 133 MB/s |
| Board dimensions | 10.7 × 17.5 cm |
| Weight | 0.127 kg |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host bus
Camera Link image acquisition board
NI explicitly lists PCI-1428 support in NI-IMAQ 19.0.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. The manual specifies the four-tap, 8-bit Medium mode, requiring both board connectors.
20–50 MHz.
