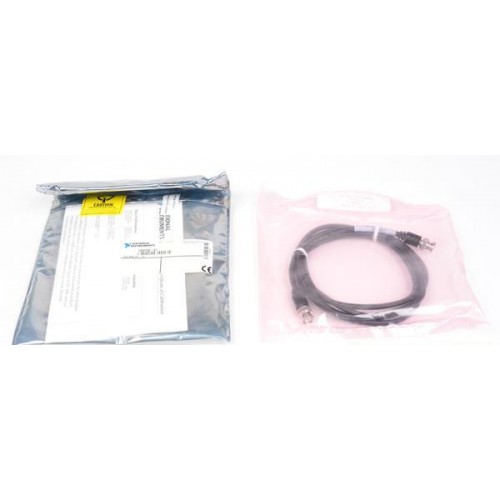

The NI PCI-1411 acquires single-channel analog color or monochrome video through composite or S-Video inputs.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-1411 transfers acquired images to onboard memory or directly to host memory. Its color-space processor converts RGB data to HSL and applies independent channel gain and lookup tables.
Verified product specifications.
| Video input channels | 1 |
|---|---|
| Input connections | Composite BNC or Y/C S-Video; RSE |
| RS-170/NTSC frame rate | 29.97 frames/s |
| CCIR/PAL frame rate | 25 frames/s |
| Input impedance | 75 ±1% Ω |
| Output formats | 32-bit RGB or HSL; individual 8-bit component planes |
| Dimensions | 10.7 × 17.5 cm |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Analog video acquisition
NI-IMAQ
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI-IMAQ handles acquisition and saving; image analysis requires separate software.
Yes. The external line supports rising- or falling-edge acquisition triggering.
