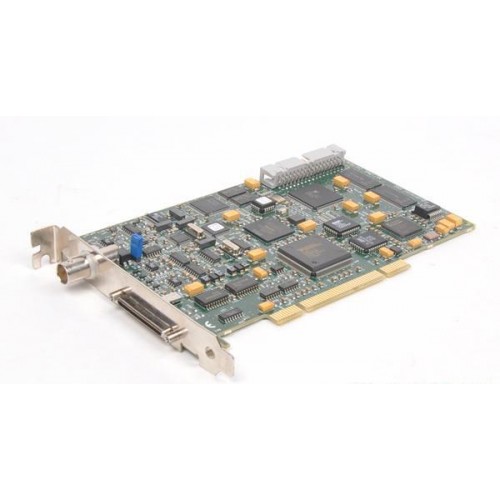

The NI PCI-1409 acquires analog camera images through a PCI interface, with 8- or 10-bit image data and onboard buffering.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
A video multiplexer selects one of four analog inputs for a shared ADC. Region-of-interest control limits transferred image data.
Verified product specifications.
| ADC resolution | 10; 8-bit output through LUT conversion bit |
|---|---|
| Onboard SDRAM | 16 MB |
| Maximum sampling frequency | 40 MHz |
| Video input impedance | 75 ohm |
| External connectors | BNC and 68-pin VHDCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Image acquisition
NI identifies the IMAQ 6822 breakout box and cable for additional camera and trigger connections.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
RS-170/NTSC, CCIR/PAL, VGA, and progressive scan; nonstandard cameras require appropriate timing configuration.
No. Unplug the BNC cable when using VIDEO0 through the VHDCI connector.
