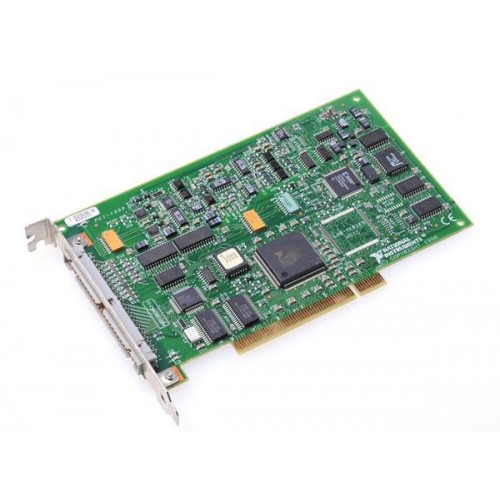

The NI PCI-1200 combines analog acquisition, voltage outputs, digital I/O and counter/timers on a PCI board.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Designed for PCI bus computers, the PCI-1200 provides mixed-signal acquisition and timing functions. Its software-selectable input configurations include single-ended, pseudodifferential and differential modes.
Verified product specifications.
| Analog input configurations | 8 single-ended, 8 pseudodifferential or 4 differential |
|---|---|
| ADC resolution | 12 bit |
| Maximum sampling rate | 100 kS/s |
| Analog outputs | 2 channels, 12-bit |
| Digital I/O | 24 TTL-compatible lines |
| Counter/timers | 3, each 16-bit |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host bus
Multifunction DAQ board
NI specifies NI-DAQ 6.9.x or earlier; PCI-1200 is not supported by NI-DAQ 7.0.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It provides four differential inputs or eight single-ended inputs.
NI lists PCI-1200 as unsupported by NI-DAQ 7.0 in both NI-DAQmx and Traditional NI-DAQ. NI directs users to NI-DAQ 6.9.x or earlier.
