PCB Mounting Connectors

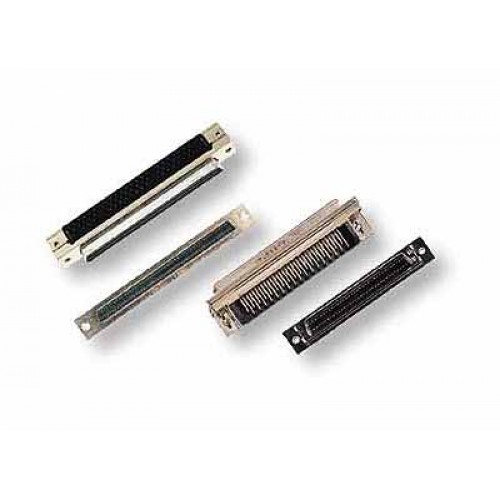

NI PCB mounting connectors provide board-level connections for custom interfaces. This catalog record describes a connector family; the exact variant is not identified.

ManufacturerNational Instruments

ModelPCB Mounting Connectors

Product TypePCB-mount connector family

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCB Mounting Connectors

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Position counts68 and 100, depending on variant

Mounting orientationsRight-angle or vertical

Selection requirementConfirm connector type and signal mapping

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Board-mount connectors are normally soldered onto printed circuit boards or custom interface boards, where a mating cable provides the external connection.

68-position male D-Type board-mount variants.
100-position female D-Type board-mount variants.
Right-angle and vertical configurations support different PCB layouts.

Verified specifications

Technical data

Verified product specifications.

68-position right-angle family reference	777600-01; male, 0.050 D-Type
68-position vertical family reference	777601-01; male, 0.050 D-Type
100-position right-angle family reference	777778-01; female, 0.050 D-Type
100-position vertical family reference	777779-01; female, 0.050 D-Type
