National Instruments PC-STEP-4CX Plug-in motion controller

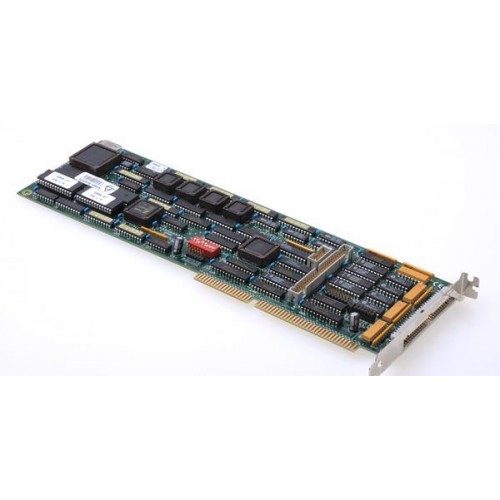

1 image: Click to enlarge

National Instruments · ValueMotion

PC-STEP-4CX

The National Instruments PC-STEP-4CX is a ValueMotion plug-in motion controller. NI documents its use controlling an XY-positioning stage in an optical system for measuring micromachined silicon wafers.

ManufacturerNational Instruments

ModelPC-STEP-4CX

Product TypePlug-in motion controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PC-STEP-4CX

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

ManufacturerNational Instruments

Product familyValueMotion

Hardware formatPC plug-in board

Documented applicationXY-positioning stage control
